High Precision Taper Roller Bearing 32012 Truck Roller Bearing 60x95x23
32012 Tapered Roller Bearing: High Combined Load For Trucks, Agricultural & Mining Gearboxes
Product Overview

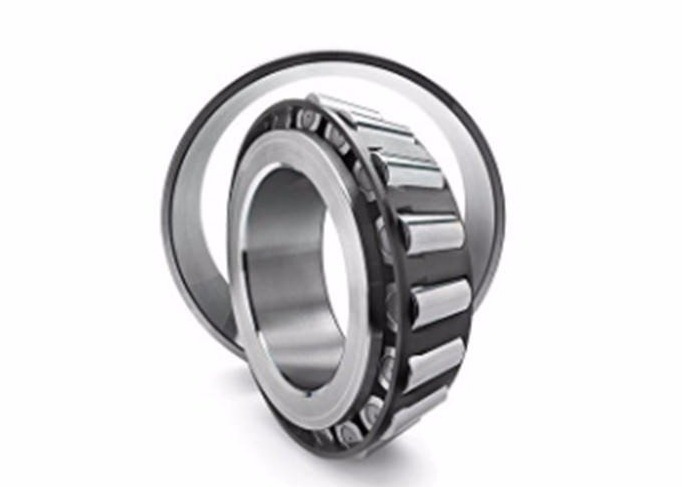

The 32012 tapered roller bearing is a high-precision mechanical component designed for machinery that demands reliable performance under combined loads. As part of the 320 series, it features specific dimensional and performance characteristics. With an inner diameter of 60mm, outer diameter of 95mm, and width of 23mm, it provides an optimal balance between compactness and load-bearing capacity.
This bearing is engineered to handle both substantial radial loads and significant axial forces simultaneously. The design enables application in various industrial scenarios where machines experience complex stress conditions. Similar to other tapered roller bearings, the 32012 requires precise installation and alignment to ensure smooth operation and long-term durability.
Structural Design
Rolling Elements
The rolling elements are tapered rollers manufactured from high-quality high-carbon chromium bearing steel (GCr15). After heat treatment processes including quenching and low-temperature tempering, the rollers achieve surface hardness of HRC58-64, providing excellent wear resistance to withstand abrasive forces during operation.
The tapered shape creates line contact with raceways, significantly increasing load-distribution area compared to point-contact bearings and effectively reducing local stress concentrations. Dimensional tolerance is strictly controlled within P0-P4 class, with surface roughness (Ra) maintained at ≤0.08μm for smooth rotation and reduced friction.
Raceways
Both inner and outer rings feature tapered raceways with carefully designed cone angles (approximately 16°) optimized for efficient handling of combined radial and axial loads. Forces are transmitted along the generatrices of the cones formed by raceways and rollers.
Raceways undergo advanced heat treatment including carburizing (1.5-3mm depth) followed by quenching and tempering, resulting in hardened surface layers with hardness of HRC58-64. This provides excellent fatigue strength to endure repeated load cycles without premature failure.
Cage
The cage separates and guides tapered rollers, typically made from high-strength structural steel (45# steel or 20CrMnTi). Precision-machined using CNC turning and milling techniques, it creates evenly spaced tapered pockets that precisely fit rollers, preventing collision and excessive friction.
Surface treatments include black oxide for corrosion resistance or phosphating for improved wear resistance. High-end versions may use brass cages (H62 or H65) offering better thermal conductivity for heat dissipation in elevated temperature applications.
Performance Characteristics
Combined Load-Carrying Capacity
Designed to handle substantial combined radial and axial loads with basic rated dynamic load (Cr) approximately 101kN and basic rated static load (C0r) around 122kN. Supports radial loads and axial loads typically 30-40% of radial load capacity, making it ideal for heavy-duty transportation applications.
Speed Adaptability
Optimized for moderate-speed operation with reference speed under grease lubrication around 5300 r/min and limiting speed under oil-bath lubrication up to 6700 r/min. Suitable for industrial motors, conveyor systems, and agricultural machinery. Proper lubrication and cooling are essential within recommended speed ranges.
Misalignment Sensitivity and Mitigation
Sensitive to misalignment between shaft and housing, where even 0.1-0.2° can cause uneven loading, increased vibration, noise, and reduced service life. Mitigation measures include precision alignment tools (laser alignment), maintaining radial misalignment ≤0.02mm and axial misalignment ≤0.01mm. Proper fits (H7/r6 for inner ring, H7/js6 for outer ring) and self-aligning washers or flexible couplings help reduce negative effects.
Application Fields
Heavy-Duty Automotive Industry
Used in drive axles and differential systems of trucks and buses, supporting vehicle weight (radial load) and handling axial forces during acceleration, braking, and cornering. Also employed in rear axles of commercial buses and special-purpose vehicles like dump trucks and concrete mixers.
Industrial Machinery
Vital component in mining machinery conveyor gearboxes, construction material machinery (cement mixer gearboxes, asphalt mixer shafts), and heavy-duty motors (20-40kW), operating in dusty and high-vibration environments.
Agricultural Machinery
Installed in tractor rear axle systems supporting tractor weight and heavy implements (plows, harvesters), handling axial forces during field operations and turns. Also used in large irrigation pumps managing radial loads from impellers and axial thrust from fluid pressure.
Dimensions and Specifications
| Dimension Type |
Value |
| Inner Diameter (d) |
60mm |
| Outer Diameter (D) |
95mm |
| Width (B) |
23mm |
Maintenance Guidelines
Lubrication Management
Essential for long-term performance. For heavy-load applications, use lithium-based grease (NLGI grade 2-3, dropping point ≥200°C), filling 1/3-1/2 of bearing internal space. For high-temperature environments (up to 200°C), use synthetic polyurea-based grease. For high-load moderate-speed applications, oil-bath lubrication with ISO VG 68-100 industrial gear oil. Lubrication intervals: 1-2 months in dusty/vibratory environments, 3-5 months in normal conditions.
Regular Inspection
Conduct visual inspections for raceway pitting, roller spalling, or cage deformation. Monitor vibration levels (normal ≤2.0mm/s, concern if >3.5mm/s). Monitor operating temperature (normal ≤90°C, concern if >100°C). For critical equipment, perform ultrasonic testing every 1-2 months to detect internal defects.
Installation Precautions
Maintain clean, dust-free installation environment. Use hydraulic presses and bearing mounting sleeves (avoid hammering). Ensure interference fit (H7/r6) between inner ring and shaft, clearance fit (H7/js6) between outer ring and housing. Verify runout with dial indicators (radial ≤0.03mm, axial ≤0.02mm).
Storage Considerations
Store in clean, dry warehouse (temperature 5-25°C, humidity ≤50%). Keep in original sealed anti-rust packaging. If damaged, vacuum-seal with anti-rust film. Store horizontally on sturdy shelves with maximum stack height of 1 layer. Conduct regular inspections every 3 months. If rust detected, clean with kerosene, dry with compressed air, coat with anti-rust oil, and repackage.
