Features

Specifications

Bearing Series: 30205 Taper Roller Bearing

Bearing Material: Bearing Steel GCr15

Inner Diameter: 25mm

Outer Diameter: 52mm

Width: 16.25mm

Model: Customizable

Highlight:

30205 Taper Roller Bearing

Automobile Industry High Load Roller Bearings

High Load Roller Bearings 30205

Basic Infomation

Place of Origin: CHINA

Brand Name: Kesle

Payment & Shipping Terms

Delivery Time: 5-8 work days

Payment Terms: T/T,Western Union,MoneyGram,PayPal

Gallery

30205 Taper Roller Bearing High Load Roller Bearings For Automobile Industry

Product Description

30205 Taper Roller Bearing High Load Roller Bearings For Automobile Industry

30205 Tapered Roller Bearing: High Load & Precision Performance

Product Overview

The 30205 tapered roller bearing is a key basic component in mechanical transmission systems. With its meticulously designed structure and excellent performance, it provides solid support for the stable and efficient operation of various mechanical equipment.

Its unique structure enables it to bear considerable radial loads and unidirectional axial loads simultaneously, performing exceptionally well in working conditions with strict requirements on equipment bearing capacity and running accuracy.

This type of bearing is widely used in numerous industries such as automobile manufacturing, machine tool processing, heavy machinery, and agricultural machinery, and is a core component ensuring the stable operation of key equipment parts and efficient power transmission.

Structural Design

Exquisite Coordination between Rollers and Raceways: The 30205 tapered roller bearing is equipped with frustum-shaped rollers inside, which operate in an orderly manner under the precise guidance of the large rib of the inner ring. The vertices of the conical surfaces of the inner ring raceway surface, outer ring raceway surface, and roller rolling surface cleverly converge at the same point on the bearing's center line.

This exquisite design allows the rollers to achieve an almost ideal pure rolling state on the raceway surfaces. During the operation of the equipment, when bearing complex and variable loads, the bearing achieves force balance through the combined force exerted by the inner and outer ring raceway surfaces, as well as the interaction and reaction force between the large rib of the inner ring and the rollers.

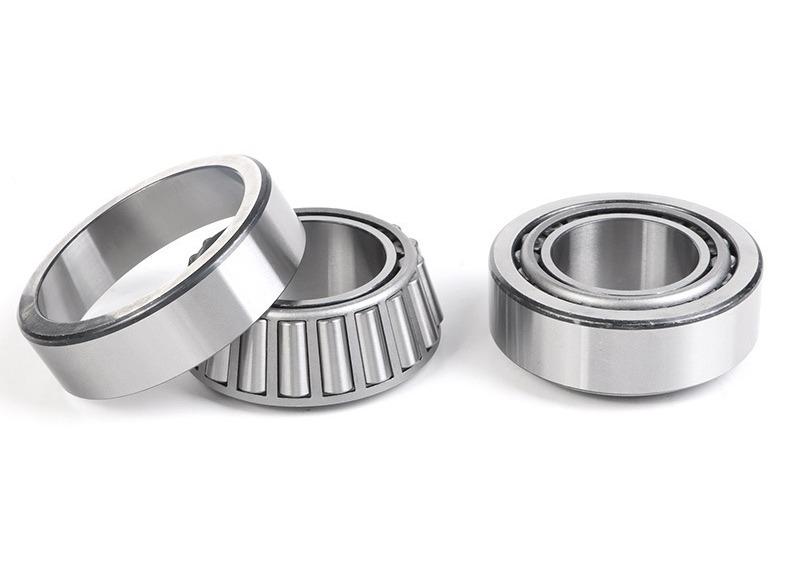

Separable Inner and Outer Ring Design: The bearing adopts a structure where the inner ring assembly and the outer ring are separable, which brings great convenience to installation and maintenance work. During the installation phase, technicians can separately install the inner and outer rings of the bearing, and flexibly and precisely adjust the axial clearance and radial clearance according to different actual working conditions.

Dimensional Specifications

Dimension Type	Dimension Value (mm)
Inner Diameter (d)	25
Outer Diameter (D)	52
Width (B)	16.25
Inner Ring Height (C)	15
Outer Ring Height (T)	13
Weight	Approximately 0.21kg (the actual weight will have slight fluctuations within a certain range due to differences in manufacturing processes and materials)

Performance Advantages

Strong Bearing Capacity: The unique roller and raceway design of the 30205 tapered roller bearing results in a large contact area between the rollers and the raceways, which can efficiently disperse the borne loads. Based on this, the bearing exhibits extremely strong bearing performance and can easily handle large radial loads and unidirectional axial loads.

Excellent Rigidity and Accuracy Retention: Due to the line contact between the rollers and the raceways, the 30205 tapered roller bearing has higher rigidity compared to bearings with point contact. During equipment operation, it can effectively suppress the deformation and vibration of the shaft, and always maintain high running accuracy.

Good High-Speed Adaptability: Although tapered roller bearings are mainly positioned to bear large loads, the 30205 model has undergone a series of carefully optimized designs and can well adapt to high-speed operation conditions within a certain speed range. By reasonably selecting high-quality materials, optimizing the structure design, and using advanced manufacturing processes, the internal friction and heat generation of the bearing are effectively reduced.

Application Fields

Automobile Industry: In the field of automobile manufacturing, 30205 tapered roller bearings are widely used in key parts such as the front wheels, rear wheels, transmissions, and differential pinion shafts of automobiles.

Machine Tool Field: Machine tool spindles have extremely high requirements for running accuracy and rigidity. The 30205 tapered roller bearing, with its good rigidity and accuracy retention characteristics, has become an ideal choice for machine tool spindles.

Construction Machinery Field: Construction machinery such as cranes and excavators face complex and variable load environments during operation. The 30205 tapered roller bearing can bear the huge radial and axial loads generated by these equipment during work.

Agricultural Machinery Field: In large agricultural machinery, such as tractors and combine harvesters, 30205 tapered roller bearings also play an important role. It can bear the complex loads generated by agricultural machinery during field operations due to factors such as terrain undulation and soil resistance.
