Customizable 51101 Thrust Bearing Axial Load Thrust Ball Bearing For Auto / Precision Instruments

The 51101 thrust ball bearing is a high-precision mechanical component designed for machinery requiring efficient axial load handling. As a core member of the 511 (single-direction thrust ball bearing) series, it features compact dimensional parameters: an inner diameter (d) of 12mm, an outer diameter (D) of 26mm, and a width (T) of 9mm.

Unlike tapered roller bearings that handle combined loads, this bearing is specialized for axial load transmission—it cannot withstand radial loads, making it ideal for applications where machinery primarily bears axial forces (e.g., vertical shafts, hydraulic cylinders). Its compact structure allows installation in limited-space scenarios, while strict alignment requirements during assembly ensure stable operation and long service life.

The 51101 bearing uses high-precision spherical balls as rolling elements, typically made of high-carbon chromium bearing steel (GCr15). After quenching and low-temperature tempering, the balls achieve a surface hardness of HRC58-64, ensuring excellent wear resistance and impact toughness.

The manufacturing process adheres to strict quality standards: dimensional tolerance is controlled within P0-P4 class, and surface roughness (Ra) ≤0.08μm. The spherical shape enables point contact with the raceways, reducing friction during axial load transmission and ensuring smooth rotation even at moderate speeds.

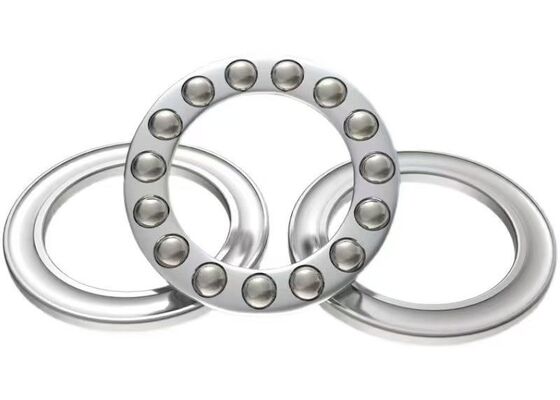

The bearing consists of two precision-machined washers: a shaft washer (inner washer, mounted on the shaft) and a housing washer (outer washer, mounted in the housing). Both washers feature a circular groove (raceway) on their contact surfaces, designed to match the curvature of the balls and ensure stable load transmission.

The raceways undergo carburizing (case depth 1.0-2.0mm), quenching, and tempering, resulting in a surface hardness of HRC58-64 and high fatigue strength. This design allows axial forces to be evenly distributed across the ball-raceway contact points, avoiding local stress concentrations and extending the bearing's service life.

A lightweight yet durable cage is used to separate and guide the spherical balls, preventing collision and friction between adjacent balls during operation. The cage is typically made of low-carbon steel (08F) or engineering plastic (nylon 66 for corrosion-sensitive scenarios).

For steel cages, surface phosphating treatment is applied to enhance wear resistance and rust prevention; plastic cages offer lower friction and quieter operation, suitable for low-to-medium speed applications. The cage's precision-machined pockets ensure the balls are evenly spaced, maintaining stable axial load distribution and improving the bearing's overall reliability.

The 51101 thrust ball bearing is optimized for single-direction axial load handling. Its basic rated dynamic load rating (Ca) is approximately 10.5kN, and basic rated static load rating (C0a) is around 15.2kN (values vary by manufacturer).

It can withstand continuous axial loads up to 10kN and short-term impact axial loads up to 15kN, making it suitable for light-to-medium duty applications such as small hydraulic motor shafts, vertical pump end caps, and precision instrument spindles.

Due to its point-contact design and axial load focus, the 51101 bearing is suitable for low-to-medium speed operation. Its reference speed (grease lubrication) is approximately 6000 r/min, and limiting speed (oil-bath lubrication) reaches up to 8000 r/min.

High-speed operation (exceeding 8000 r/min) may cause centrifugal force-induced ball slippage, increasing friction and temperature (over 90°C). For high-speed scenarios, additional cooling measures (e.g., oil mist lubrication) and precision balancing of the shaft are recommended to maintain performance.

The 51101 bearing is highly sensitive to axial misalignment between the shaft and housing. Even 0.1° of misalignment can cause uneven contact between the balls and raceways, leading to increased vibration, noise, and reduced service life.

Mitigation measures include:

• Using precision machining to ensure the shaft and housing end faces are perpendicular (perpendicularity tolerance ≤0.01mm)
• Adopting a clearance fit (H7/h6) between the shaft washer and shaft, and between the housing washer and housing, to allow slight axial adjustment
• In applications prone to minor misalignment (e.g., vibrating equipment), pairing with self-aligning washers to compensate for axial deviations

In industrial settings, the 51101 bearing is widely used in:

• Small hydraulic/pneumatic cylinders—supports axial thrust from piston movement
• Vertical pumps and fans—handles axial loads from impeller or fan blade rotation
• Precision gearboxes (light-duty)—accommodates axial thrust from gear meshing
• Printing machinery—used in roller end shafts to maintain axial positioning and smooth rotation

In automotive and motorcycle applications, it is primarily used in:

• Motorcycle clutch systems—supports axial thrust from clutch engagement/disengagement
• Small automotive auxiliary components (e.g., electric window motors, windshield wiper motors)—handles axial loads from motor rotor movement
• Automotive air conditioning compressors—maintains axial stability of the compressor shaft during operation

The 51101 bearing's compact size and high precision make it suitable for:

• Precision measuring instruments (e.g., calipers, dial indicators)—ensures smooth axial movement of internal components
• Small electric motors (500W-2kW)—supports axial thrust from the motor rotor
• Household appliances (e.g., washing machine drain pumps, air purifier fans)—handles light axial loads in compact spaces

Proper lubrication is critical for reducing friction and extending service life:

• Grease lubrication: Use NLGI 2 lithium-based grease, filling 1/2-2/3 of the bearing's internal space (ensures full contact between balls and raceways)
• High-temperature environments: Switch to synthetic polyurea grease (operating temp -20°C to 180°C)
• Oil lubrication: Adopt ISO VG 32-68 industrial oil for medium-speed scenarios

Lubrication intervals: Every 2-3 months for normal operation; every 1 month for dusty/vibratory environments.

Frequent inspections prevent premature failure:

• Visual checks: Look for raceway pitting, ball spalling, or cage deformation
• Vibration monitoring: Normal vibration ≤1.8mm/s; exceed 3.0mm/s indicates misalignment or wear
• Temperature monitoring: Normal operating temp ≤80°C; over 90°C suggests lubricant degradation or ball slippage

For precision instruments, conduct monthly ultrasonic testing to detect internal defects.

• Cleanliness: Ensure a dust-free environment—contaminants can cause rapid wear under axial loads
• Tools: Use bearing mounting sleeves to press-fit the washers, avoiding hammering (prevents raceway deformation)
• Fits: Shaft washer-shaft (H7/h6) clearance fit, housing washer-housing (H7/h6) clearance fit
• Alignment: Use a dial indicator to verify axial runout (≤0.02mm) and perpendicularity (≤0.01mm) between the shaft and housing end faces

Store in a clean, dry warehouse (temp 5-25°C, humidity ≤50%):

• Packaging: Keep in original sealed anti-rust packaging; damaged packaging requires vacuum-sealing with anti-rust film
• Placement: Store horizontally on flat shelves, max stack height 2 layers (avoids washer deformation)
• Inspection: Check every 3 months—if rust is found, clean with kerosene, dry with compressed air, apply anti-rust oil, and repackage
