F3-8M Miniature Thrust Ball Bearing Customizable For Medical / Precision Instruments

1
MOQ
F3-8M Miniature Thrust Ball Bearing Customizable For Medical / Precision Instruments
Features Gallery Product Description Chat Now
Features
Specifications
Type: Miniature Thrust Ball Bearing
Bearing Material: Bearing Steel GCr15
Inner Diameter: 3 Mm
Outer Diameter: 8 Mm
Thickness: 3.5 Mm
Model: Customizable
Highlight:

F3-8M Miniature Thrust Ball Bearing

,

Miniature Thrust Ball Bearing Customizable

,

Precision Instruments Miniature Thrust Bearing
Basic Infomation
Place of Origin: CHINA
Brand Name: Kesle
Payment & Shipping Terms
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union,MoneyGram,PayPal
Product Description
F3-8M Miniature Thrust Ball Bearing Customizable For Medical / Precision Instruments
The F3-8M Miniature Thrust Ball Bearing is a compact, high-performance solution engineered for applications where space is limited but performance cannot be compromised. This precision component ensures smooth and efficient operation across diverse industries.
Compact and Precise Dimensions
Parameter Value
Inner Diameter (d) 3.000 mm
Outer Diameter (D) 8.000 mm
Height (H) 3.500 mm
Bore Dia. Clearance (d1) 3.200 mm
Outer Dia. Pilot (D1) 7.800 mm
Radius (min) (rs) 0.15 mm
The 3.000 mm inner diameter provides a precise fit for small shafts, minimizing play and misalignment while optimizing energy consumption. The 8.000 mm outer diameter balances load-carrying capacity with space constraints, while the 3.500 mm height ensures optimal internal volume for smooth component movement.
Structural Configuration

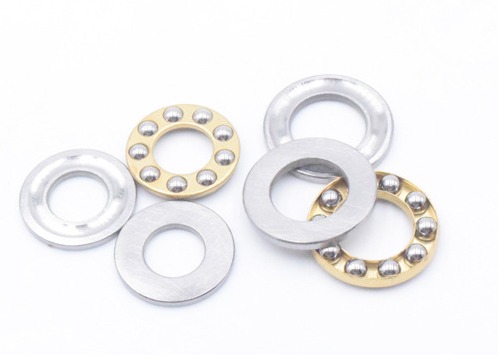

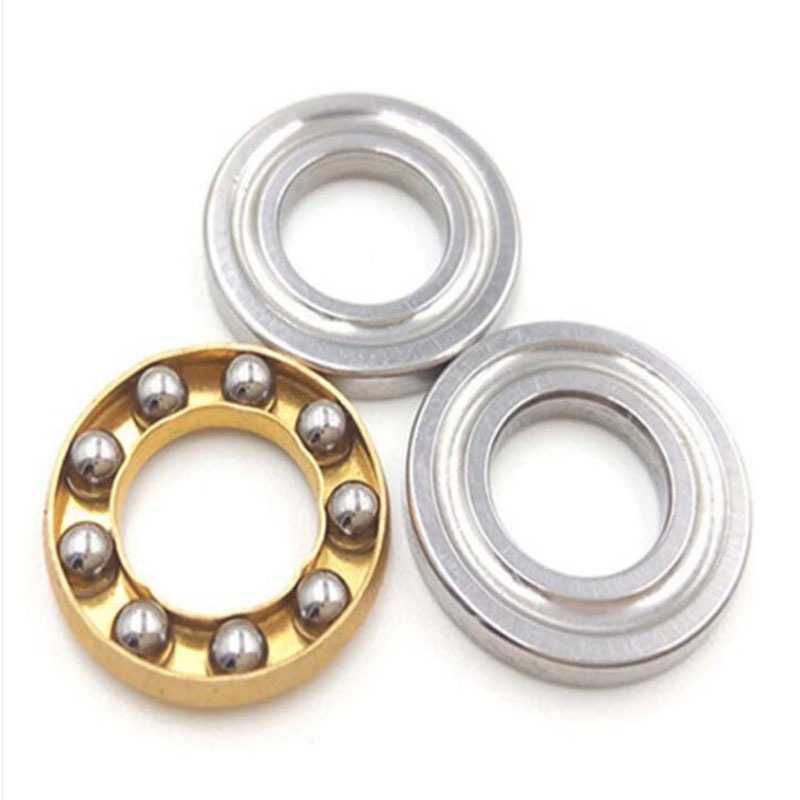

The F3-8M features two washers (shaft and housing) with high-quality steel ball rolling elements and a bronze or stainless steel cage. The cage:
  • Guides rolling elements along intended paths
  • Prevents ball collisions and reduces wear
  • Extends bearing service life
  • Prevents ball dislodgement under high-speed or high-load conditions
The separable design allows individual component installation and removal, simplifying maintenance and reducing repair costs.
Material Specifications
Crafted from premium 52100 chrome steel for washers and balls, offering:
  • High hardness for substantial axial load capacity
  • Excellent strength for high-speed rotation and heavy-duty applications
  • Superior wear resistance for extended service life
Cage materials (bronze or stainless steel) provide additional durability, wear resistance, and corrosion protection for various operating environments.
Performance Characteristics
Robust Axial Load Capacity
Handles significant unidirectional axial forces, ensuring axial stability in precision machinery and maintaining output quality through reliable load transmission.
Smooth and Quiet Operation
Precise manufacturing and optimized design minimize vibration and noise, making it ideal for medical equipment and high-precision optical instruments where stability is critical.
High-Speed Compatibility
Operates at up to 19,000 rpm (grease lubricated) or 28,000 rpm (oil lubricated), suitable for high-speed applications including power tools and dental drills.
Application Areas
Automotive and Transportation
Used in transmission systems of miniature electric vehicles, throttle control mechanisms, wheel assemblies, and vibration-damping systems.
Instrumentation and Precision Machinery
Applied in precision measuring instruments, electronic weighing scales, optical instruments (microscopes, telescopes), and miniature lathes/milling machines.
Medical and Healthcare
Utilized in handheld surgical tools, medical diagnostic equipment, blood analyzers, and imaging devices where reliability and precision are paramount.
Hobby and DIY Projects
Popular in RC vehicles (motor, gearbox, steering systems) and DIY-built small-scale machines or robots for enhanced performance and durability.
The F3-8M bearing delivers reliable performance through its compact dimensions, optimized structure, premium materials, and outstanding performance characteristics, making it an essential component across diverse mechanical systems.
