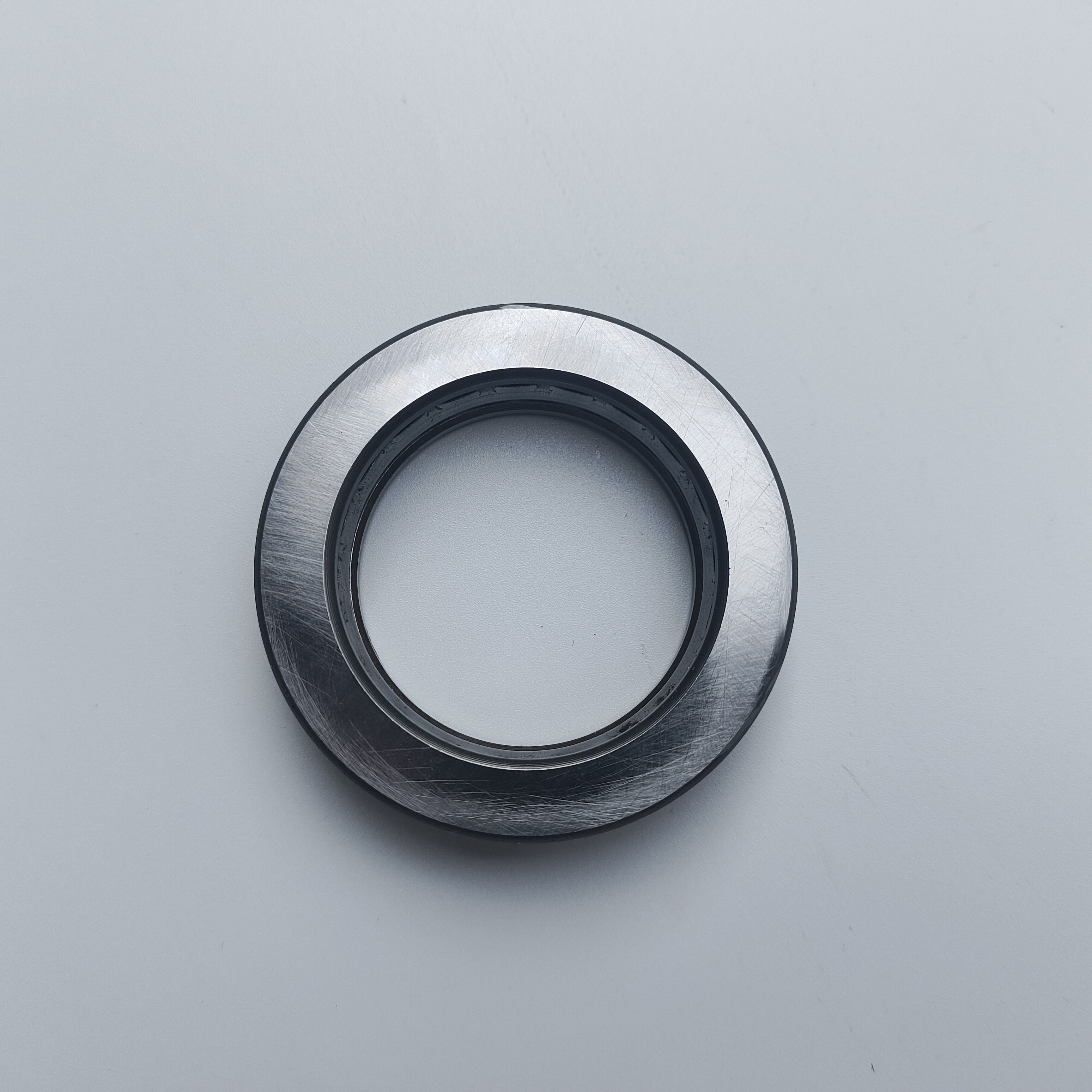

Name: 51108 Thrust Bearing Single Direction Ball Thrust Bearing Medium High Speed Adaptable
Brand: Dongguan Kesle Electronic Hardware Co., Ltd
SKU: 51108
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Category: Flat Thrust Ball Bearing

Model: 51108

Color: Natural Metallic Color

Material: High - Carbon Chromium Bearing Steel

Performance: Axial Fatigue Resistance And Impact Resistance

Load Direction: Axial (unidirectional)

Highlight:

51108 Thrust Bearing

Single Direction Ball Thrust Bearing

Ball Thrust Bearing 51108

Basic Infomation

Place of Origin: CHINA

Brand Name: Kesle

Model Number: 51108

Payment & Shipping Terms

Delivery Time: 5-8 work days

Payment Terms: T/T,Western Union,MoneyGram,PayPal

Gallery

51108 Thrust Bearing Single Direction Ball Thrust Bearing Medium High Speed Adaptable

Product Description

51108 Thrust Bearing Single Direction Ball Thrust Bearing Medium High Speed Adaptable

51108 Single-Directional Thrust Ball Bearing Medium-High Speed Adaptable
The 51108 bearing is a single-direction thrust ball bearing, primarily used to bear unidirectional axial loads, and is suitable for mechanical scenarios requiring high axial support precision.

Core Parameters

Bore diameter: 40mm
Outer diameter: 60mm
Width: 13mm
Dynamic rated load: 25.5kN
Static rated load: 63kN
Limiting speed: 7000r/min (data from SKF)

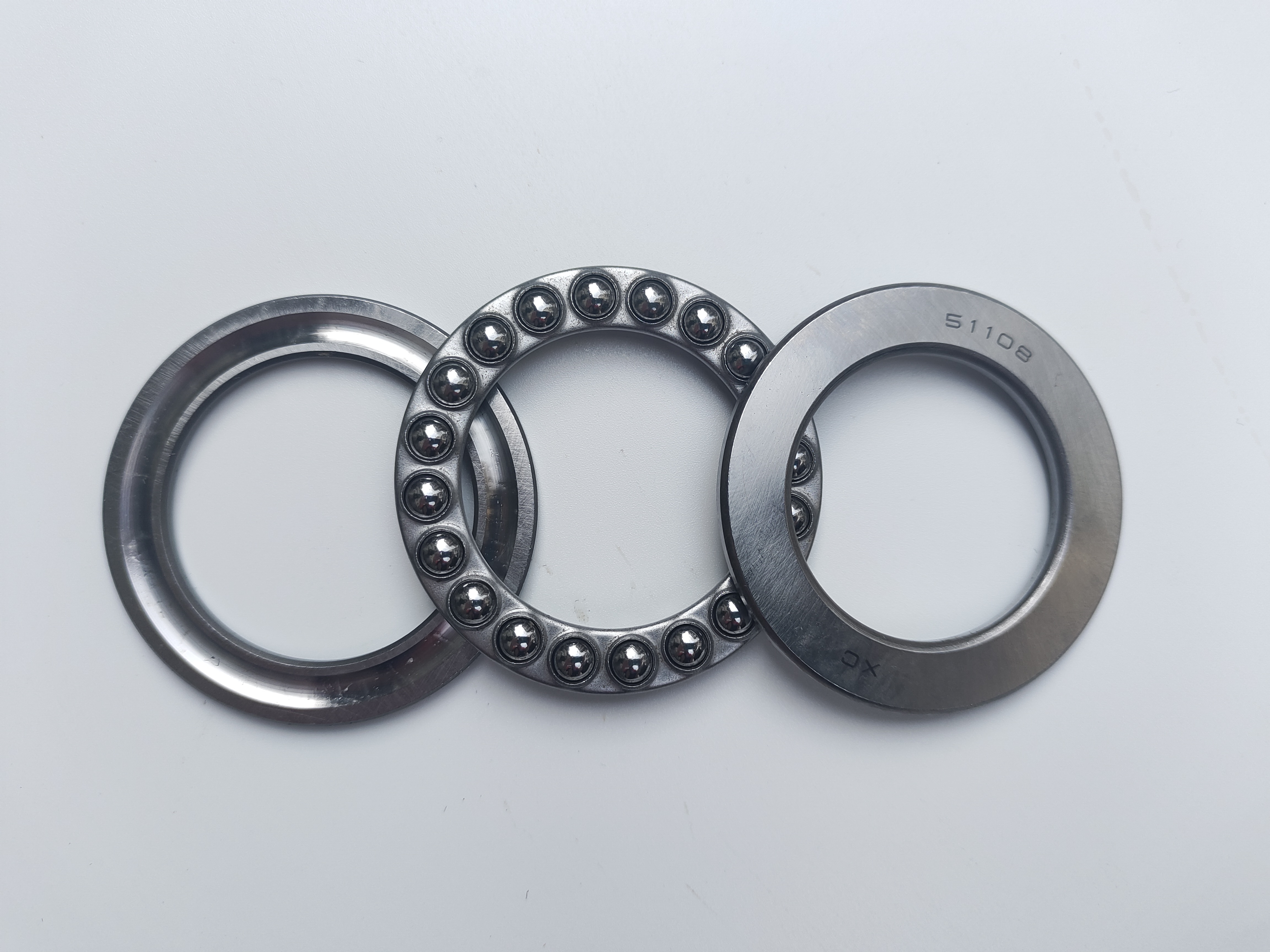

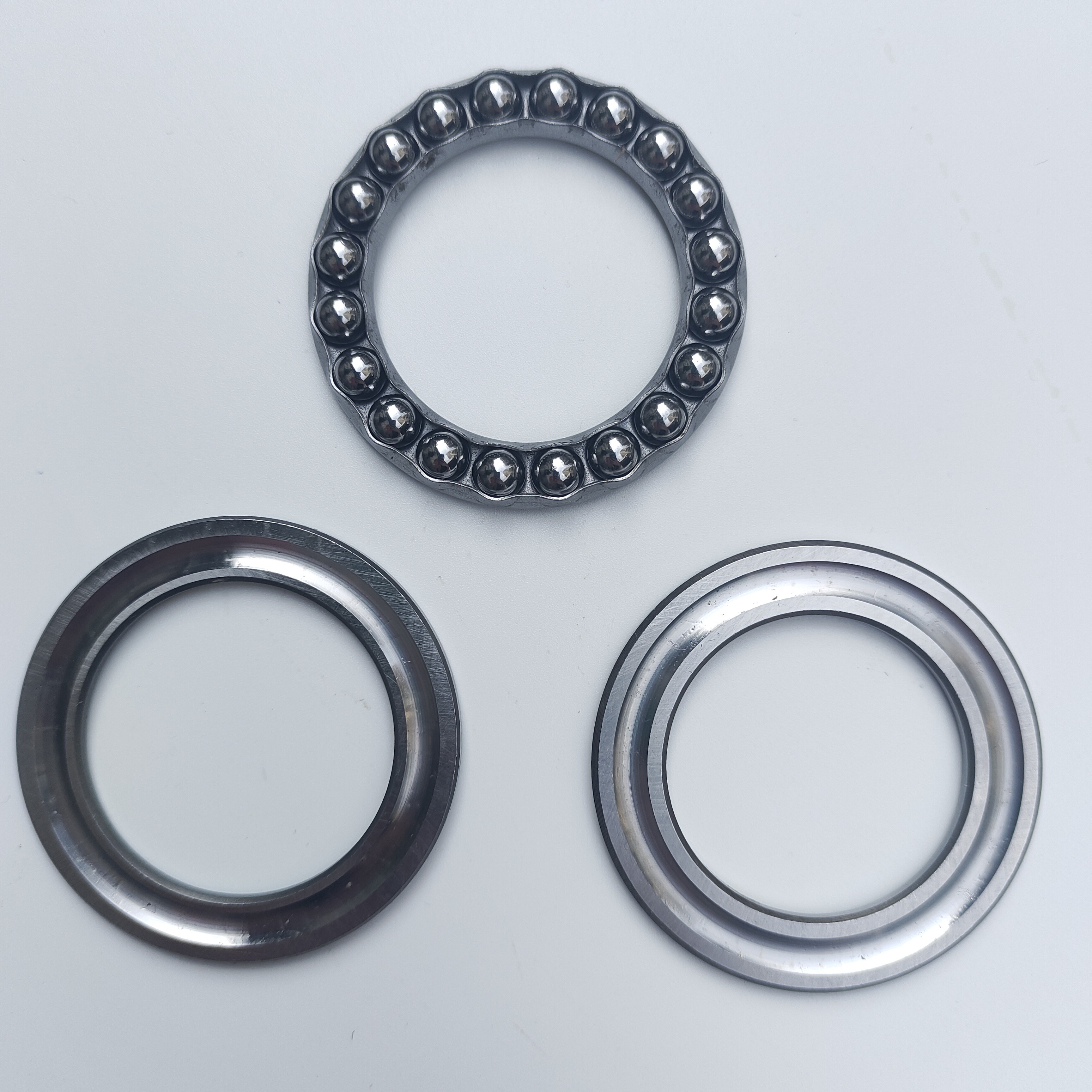

Structural features: Separable design (shaft washer, housing washer, and ball assembly are independent), facilitating installation and maintenance.

Typical Application Scenarios

Engineering Machinery: Axial support for hydraulic jacks and crane hooks, bearing vertical unidirectional loads.
Machine Tools & Industrial Equipment: Axial positioning of spindles in vertical machining centers and support for centrifuge drums, ensuring stability during high-speed operation.
Automotive & Transmission Systems: Axial limiting of automatic transmissions and clutch release bearings, adapting to frequent start-stop axial loads.
High-Temperature Environments: Stainless steel variants (e.g., SIAIF 440 stainless steel) can be used in high-temperature scenarios such as steel mill metallurgy and kilns.
General Machinery: Axial support for vacuum pumps and reducers, especially suitable for equipment requiring frequent disassembly and maintenance.

Technical Advantages and Precautions

Performance Features

High-Speed Adaptability: Data shows the limiting speed reaches 7000r/min; combined with precision-machined raceways, it can meet medium-speed requirements.
Impact Resistance: Bearing steel materials (e.g., HRB, SKF) have high hardness and wear resistance, suitable for heavy-load conditions.
Separable Design: Shaft washers and housing washers can be installed separately during installation, reducing requirements for the assembly precision of the shaft system.

Usage Recommendations

Minimum Load Requirement: Under high-speed or variable load conditions, ensure the bearing bears a minimum load of at least 2.32kN (data from SKF) to avoid slip damage between balls and raceways.

Installation Specifications: Avoid direct impact on the bearing; use special sleeves or press machines to apply force evenly. Check the fit precision of the shaft and housing bore before installation; the mating surfaces must be clean and coated with grease.
Lubrication Maintenance: Lithium-based grease is recommended; silicone-based grease can be used in high-temperature environments. Regularly check the grease condition.
