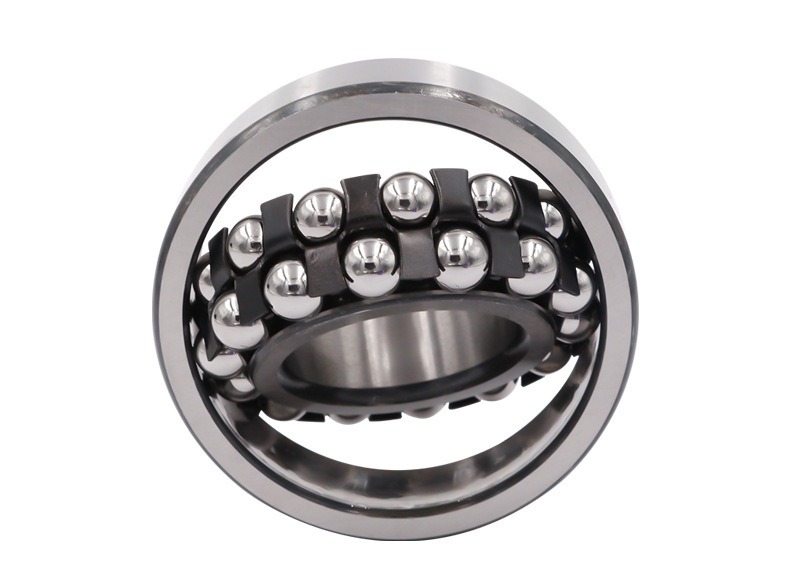

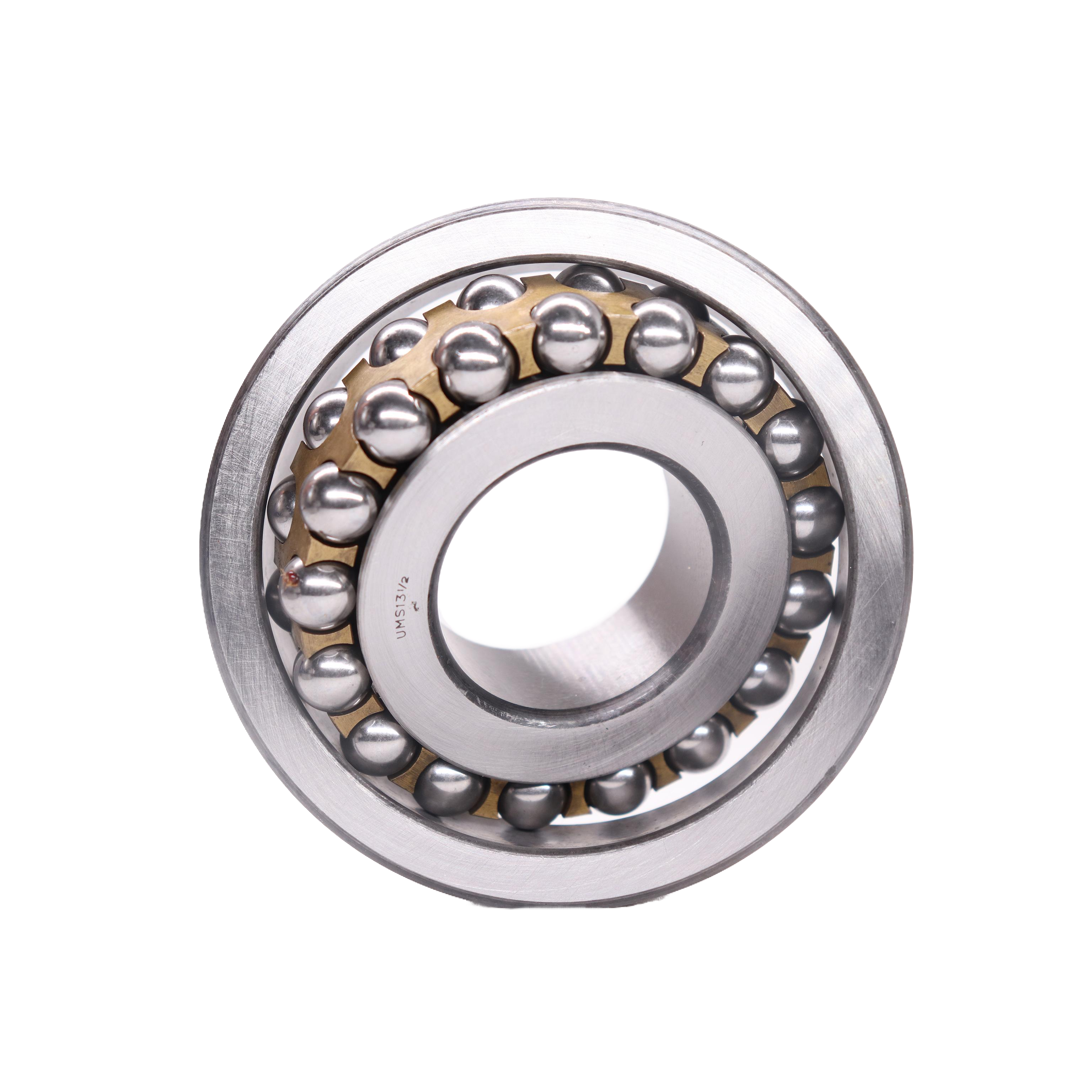

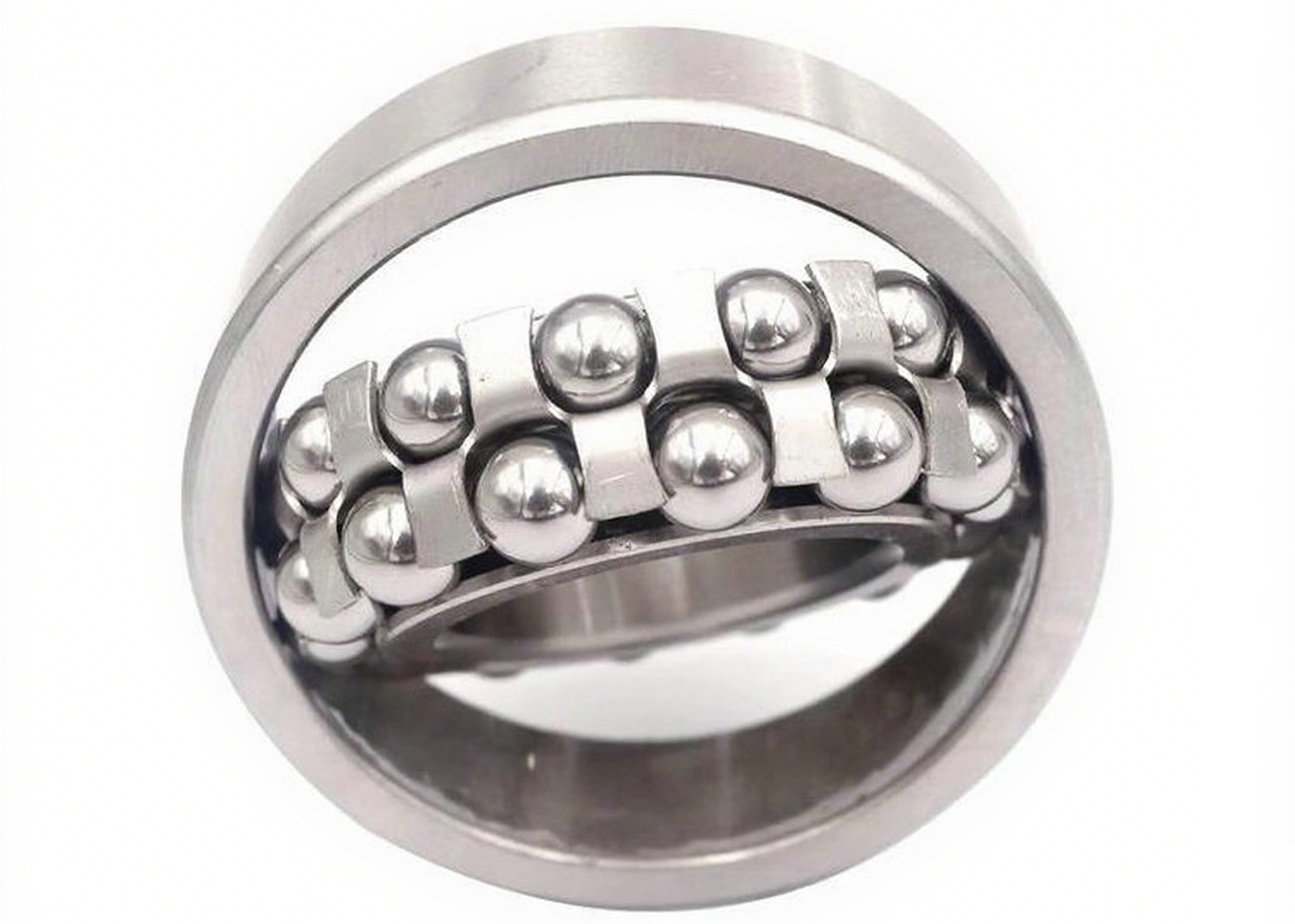

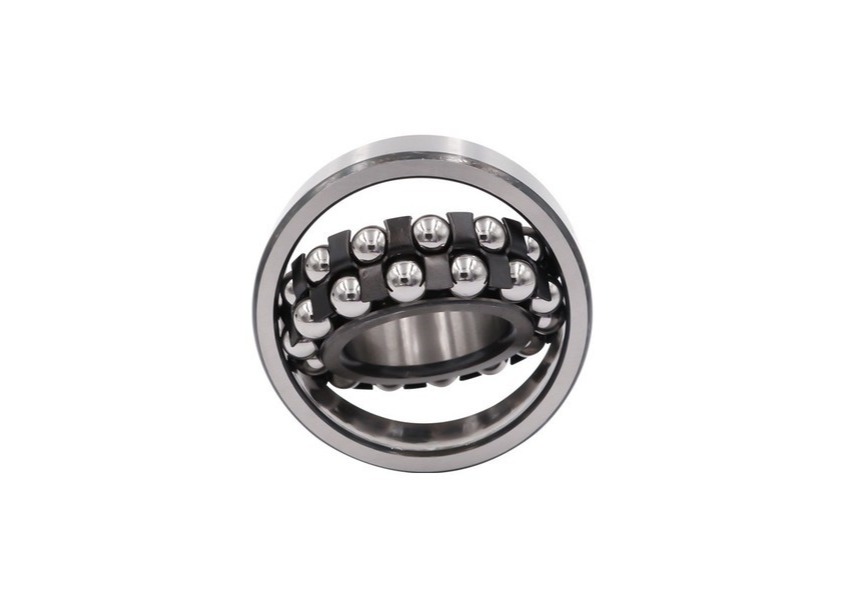

Machinery Double Row Self Aligning Bearings 1213 High Load Ball Bearings Wear Resistant

The 1213 self-aligning ball bearing is a specialized mechanical component designed for machinery operation in complex scenarios. Featuring an inner diameter of 65mm, outer diameter of 120mm, and width of 23mm, this bearing is engineered to handle radial loads while effectively addressing shaft misalignment issues.

Equipped with two rows of spherical balls manufactured from high-quality bearing steel (GCr15), each ball undergoes strict quality control to ensure smooth surface finish and precise dimensional accuracy. The spherical design provides larger contact area with raceways, enabling even load distribution and reduced stress concentrations.

Features a double-row raceway on the inner ring and spherical raceway on the outer ring. The spherical outer-ring raceway enables self-aligning functionality, compensating for misalignment between shaft and housing. Advanced heat-treatment processes provide surface hardness of HRC58-64, delivering outstanding wear and fatigue resistance.

Utilizes a high-strength steel cage with precisely designed pockets to separate and guide balls, preventing collisions during operation. Special coatings and heat treatments enhance strength and wear resistance for operation in harsh environments including high temperatures and heavy contamination.

Designed primarily for radial loads, the double-row ball configuration and large contact area enable substantial radial force handling. Suitable for medium-to-heavy radial load applications in motors, conveyors, and industrial equipment.

Can accommodate small axial loads in either direction, though large or pure axial loads may cause uneven ball loading and premature wear. Rib structure and ball arrangement provide limited axial thrust resistance for applications with minor axial forces.

The distinctive spherical outer-ring raceway allows automatic adaptation to shaft-housing misalignment up to 2°-4°. This capability reduces stress concentrations in bearings and connected components, preventing premature failure in long-shaft machinery and equipment with flexible couplings.

Optimized design of rolling elements, raceways, and cage combined with proper lubrication enables smooth operation at relatively high speeds with low friction and reduced vibration. Performance is maintained under high-speed conditions with appropriate lubrication and load management.

Extensively used in large-scale industrial motors for rotor support, conveyor systems for smooth belt movement accommodating installation misalignment, and industrial gearboxes for efficient power transmission under complex loads.

Well-suited for harsh environments with significant vibrations and misalignment from uneven terrain. Used in tractor axle support systems and agricultural equipment like combine harvesters, reducing wear and maintenance requirements.

Commonly employed in spinning frames and looms, supporting rotating spindles and shuttle-moving mechanisms. The self-aligning property maintains accuracy and efficiency essential for high-quality textile production.

Suitable for sawmills and wood lathes experiencing significant radial loads and vibrations. Supports saw blades and rotating workpieces, preventing premature wear in demanding woodworking environments.

Proper lubrication is essential for optimal performance and extended lifespan. Use high-quality lithium-based grease for general applications, or synthetic greases/oil-based lubricants for high-temperature (above 120°C) or heavy-load conditions. Fill approximately one-third to one-half of bearing internal space and maintain regular lubrication intervals based on operating conditions.

Conduct periodic visual inspections for cracks, corrosion, or abnormal wear. Monitor vibration levels and temperature for early detection of lubrication issues, excessive load, or misalignment. Promptly address any abnormal conditions to prevent further damage.

Ensure clean working environment to prevent contamination. Use specialized installation tools and proper fits: interference fit between inner ring and shaft to prevent slippage, clearance fit for outer ring in housing to allow self-aligning function. Proper alignment during installation prevents uneven loading and premature failure.

Store in clean, dry, well-ventilated areas protected from moisture, corrosive gases, and extreme temperatures. Keep in original packaging or anti-rust paper, placed horizontally to avoid uneven stress. Conduct regular storage checks and address any rust or damage before use.
