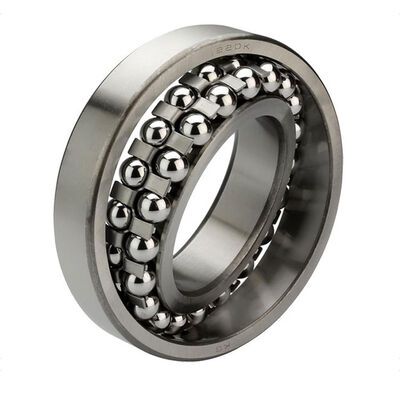

Low Friction Self Aligning Ball Bearing High Precision 1220 Bearing For Industrial / Agricultural Machinery

1220 Self-Aligning Ball Bearing For Industrial & Agricultural Machinery

In the ever-evolving domain of mechanical engineering, the 1220 self-aligning ball bearing stands out as a critical high-performance component. Engineered with meticulous precision and innovative concepts, this bearing guarantees seamless operation across diverse industrial machinery. Its distinct design and exceptional features make it optimal for applications where shaft misalignment and specific load-bearing challenges are commonly encountered.

The 1220 bearing features precisely machined inner and outer rings. The inner ring, with a 100 mm bore diameter, fits snugly onto shafts to minimize play or misalignment during operation. This enables smooth power transfer and reduces energy losses. The outer ring, with 180 mm outer diameter, balances load-carrying capacity with space constraints, efficiently distributing both radial and axial loads in harsh operating conditions.

At the core are spherical rolling elements fabricated from high-quality bearing steel. This material combines high hardness, remarkable strength, and excellent wear resistance. The precisely machined spherical shape ensures smooth rolling and efficient load distribution with minimal friction, reducing energy consumption and contributing to long-term reliability.

Rolling elements are guided by a steel or brass cage that maintains proper spacing and alignment. This prevents collisions between elements that could cause increased wear and reduced performance. The cage also retains lubricant within the bearing, ensuring continuous adequate lubrication to reduce friction and extend service life.

The outer ring's spherical raceway allows automatic adjustment to shaft misalignment or housing deflection. This feature is invaluable in applications where perfect alignment is difficult to maintain, such as long-shaft systems or equipment subject to vibrations or thermal expansion. By compensating for misalignment, the bearing reduces stress on components and enhances overall performance.

With a dynamic load rating of 64.0 kN, the 1220 bearing handles substantial radial loads in moderate-to-heavy-duty applications. It effectively bears radial loads in industrial machinery like medium-sized conveyors and large-scale fans, ensuring smooth operation and minimizing mechanical failure risks.

The spherical raceway adapts to shaft misalignment or housing deflection up to a certain angle. This is particularly useful in flexible shaft couplings or machinery subject to thermal changes. In textile machinery, it compensates for roller misalignment, ensuring smooth fabric processing and consistent quality.

Well-designed structure and high-quality components enable low-friction, smooth operation. This reduces energy consumption and operating temperatures, making the bearing suitable for precision machinery where efficiency and reliability are paramount.

Excellent vibration-damping properties absorb and dissipate operational vibrations. This makes it ideal for applications requiring reduced noise, such as high-end office equipment or sensitive environments, improving operational comfort and reducing component damage risk.

Inner and outer rings and rolling elements are made from high-carbon chromium bearing steel, known for high hardness, strength, and outstanding wear resistance. This enables the bearing to withstand substantial radial loads, high-speed rotation, and demanding applications while maintaining performance.

Cages are available in steel or brass. Steel cages offer high strength for high rotational speeds and moderate to heavy loads. Brass cages provide good corrosion resistance and low friction for corrosive environments or where smooth operation is critical.

Extensively used in medium-sized manufacturing equipment, machine tools, industrial fans, and blowers. Provides reliable spindle support for precise machining and enables smooth impeller rotation for efficient air movement while reducing noise levels.

Employed in heavy-duty truck drive shafts and industrial vehicle steering column joints where angular misalignments are common. The self-aligning feature ensures reliable performance and reduces component wear under demanding conditions.

Provides stable support in larger tractors and heavy-duty harvesters operating on uneven terrain. Used in transmission systems and axle assemblies, the bearing's high load capacity and self-aligning ability ensure smooth operation and minimize downtime.

Ensures smooth, consistent rotation in large-scale spinning and weaving machines. Supports spinning shafts for high-speed stable rotation and enables smooth movement of components like shuttles and drive shafts, contributing to efficient fabric production.

The 1220 self-aligning ball bearing, with its innovative design, high-quality materials, and outstanding performance characteristics, is a versatile and essential component in mechanical engineering. It consistently delivers reliable performance across industrial machinery, automotive applications, agricultural equipment, and textile manufacturing, optimizing performance and reliability in diverse mechanical systems.
