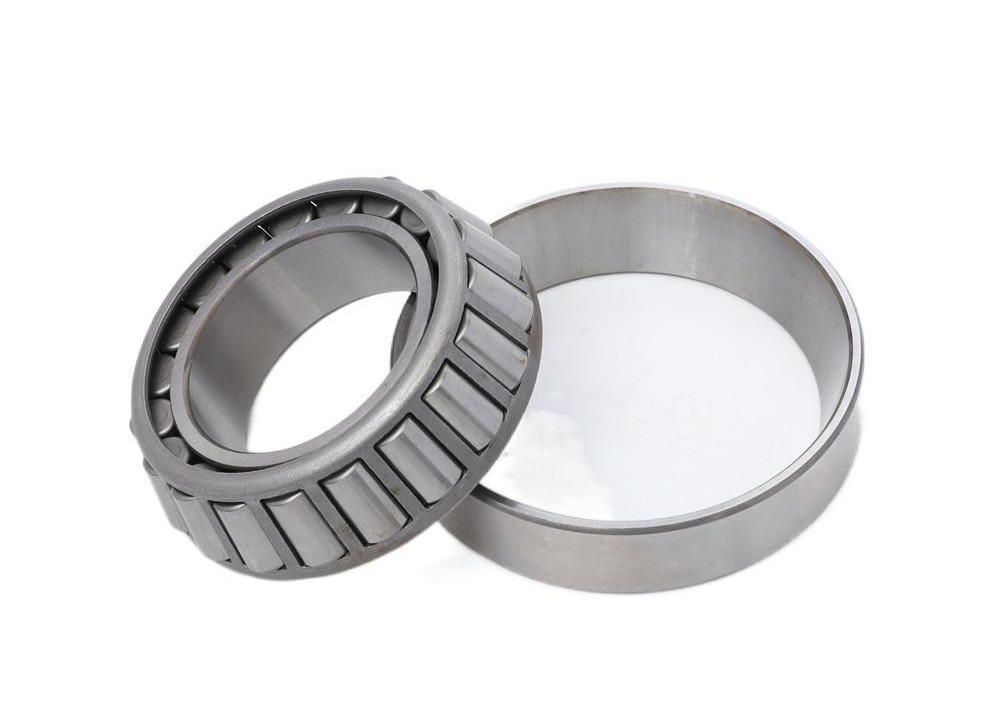

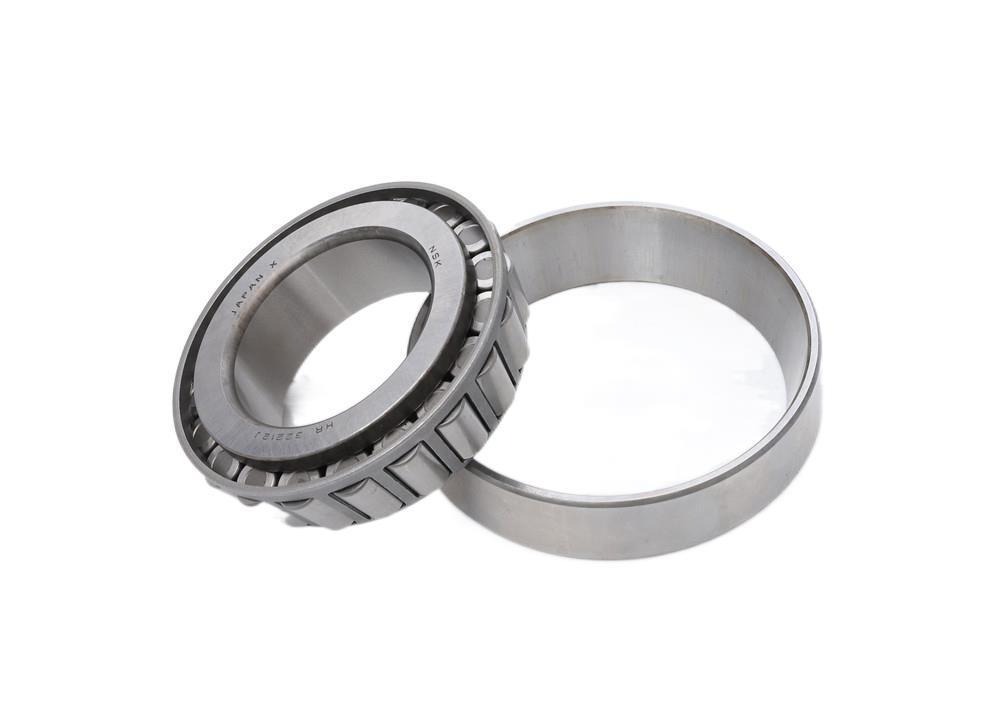

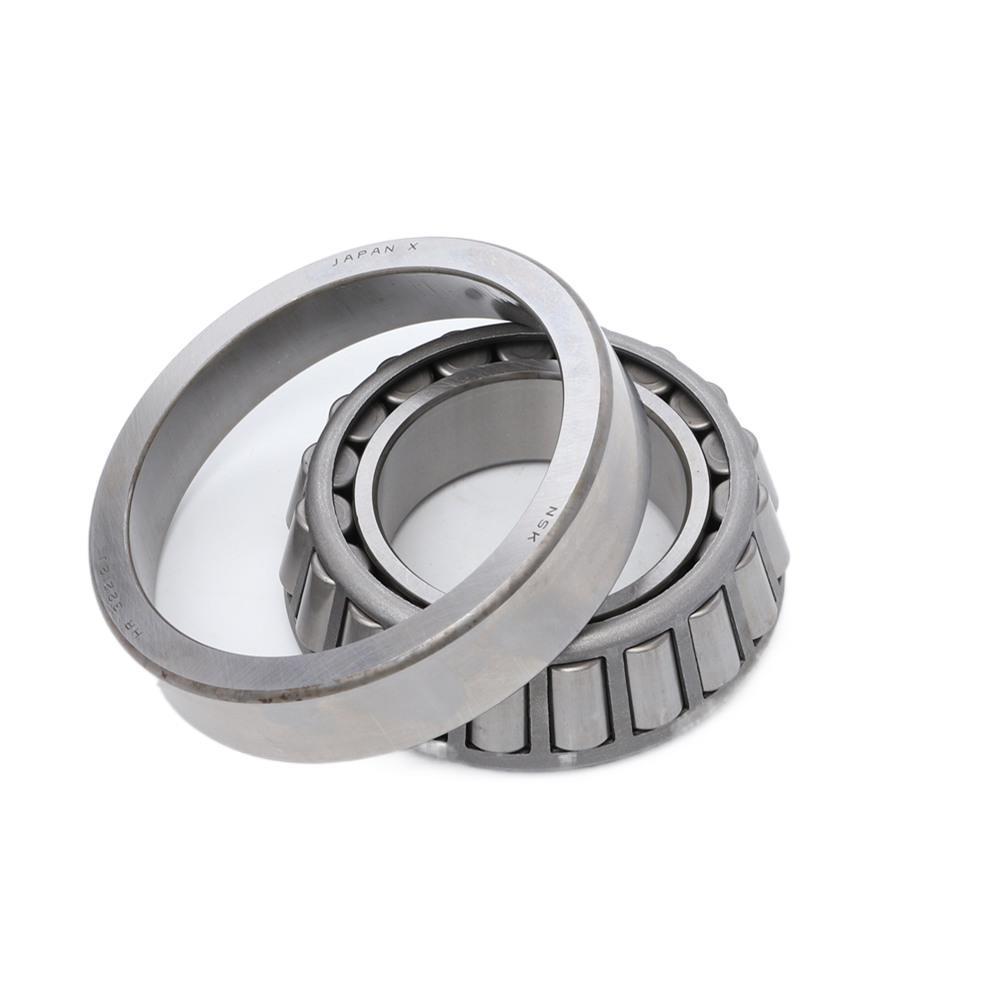

32004 Tapered Rolling Bearing Customizable Combined Load Bearing For Auto / Machinery / Construction

The 32004 tapered roller bearing is a high-precision mechanical component designed to meet operational demands in diverse machinery under complex and harsh conditions. As a key member of the tapered roller bearing series, it features specific dimensional parameters: inner diameter (d) of 20mm, outer diameter (D) of 42mm, and width (B) of 15mm. These dimensions make it versatile for applications requiring effective management of significant radial loads and addressing shaft misalignment issues that could affect machinery stability.

The 32004 bearing features precisely manufactured tapered rollers made from high-quality bearing steel (GCr15), known for excellent hardness and superior wear resistance. Each roller undergoes strict quality control to ensure smooth surfaces and accurate dimensional precision. The tapered shape creates a larger contact area with raceways, distributing loads evenly and reducing the risk of local stress concentrations that could lead to premature wear.

The inner and outer rings feature tapered raceways designed to direct forces effectively, enabling the bearing to handle both radial and axial loads. Raceways undergo advanced heat treatment to achieve high surface hardness (HRC58-64 range), providing excellent wear and fatigue resistance for extended service life under various operating conditions.

A high-strength steel cage with precisely designed pockets separates and guides the tapered rollers, preventing collisions during operation and ensuring smooth, stable rolling. Advanced designs may include special coatings or additional heat treatment to enhance strength, wear resistance, and performance in harsh environments such as high-temperature, high-contamination, or corrosive settings.

Designed to handle combined radial and axial loads, the 32004 bearing effectively distributes applied forces through its unique structural design. While specific basic rated dynamic load (Cr) and static load (C0r) ratings vary by manufacturer, it is well-suited for medium-to-heavy load applications. The bearing's axial load capacity relates to the tapered rollers' contact angle, with larger angles accommodating greater axial forces.

While operational across various speeds, the 32004 bearing has limitations compared to high-speed specific bearings. The tapered roller design with line contact generates more friction than ball bearings, potentially leading to higher temperatures and reduced efficiency at very high speeds. However, within its recommended medium-speed range, it delivers reliable performance with proper lubrication and operating conditions.

Tapered roller bearings are relatively sensitive to shaft and housing misalignment. Even minor misalignment can cause uneven loading on rollers and raceways, leading to premature wear and reduced lifespan. Proper installation and alignment procedures are crucial, and additional components may be required to ensure proper alignment conditions for optimal performance.

Extensively used in wheel hubs to support vehicle weight (radial load) while handling forces during cornering and braking (axial loads). Also employed in automotive differentials to facilitate smooth power transfer between engine and wheels while accommodating different wheel rotational speeds during turns.

Commonly used in gearboxes experiencing complex load patterns from gear meshing (radial forces) and gear tooth thrust (axial forces). Also applied in small-to-medium-sized motors to support rotating shafts and maintain operational stability.

Suitable for harsh environments with significant vibrations and heavy loads. Used in agricultural tractor axle systems to support heavy loads and handle axial forces during turning. Applied in construction equipment like small excavators for rotary joints and moving part support systems, withstanding high-impact and variable-load conditions.

Proper lubrication is essential for optimal performance and extended service life. High-quality lithium-based grease suits general applications, while synthetic greases or oil-based lubricants are preferable for high-temperature environments (above 120°C) or heavy loads. Apply lubricant to fill approximately one-third to one-half of the bearing's internal space, with regular replenishment based on operating conditions.

Periodic inspections detect early signs of wear, damage, or misalignment. Conduct visual checks for cracks, corrosion, or abnormal wear on bearing surfaces. Monitor vibration and temperature levels, as increases may indicate improper lubrication, excessive load, or misalignment. Address abnormalities promptly through thorough inspection and necessary repairs or replacements.

Maintain a clean working environment to prevent contamination. Use specialized tools to avoid damage during installation. Ensure proper fit with interference fit between inner ring and shaft to prevent slippage, and clearance fit for outer ring in housing. Critical alignment with shaft and housing prevents uneven loading and premature failure.

Store in clean, dry, well-ventilated areas protected from moisture, corrosive gases, and extreme temperatures. Keep in original packaging or anti-rust paper to prevent rust. Store horizontally to avoid uneven stress on rolling elements and raceways. Conduct regular storage checks and address any rust or damage before use.
