Features

Specifications

Bearing Series: Thrust Ball Bearing

Bearing Material: Bearing Steel GCr15

Inner Diameter: 20mm

Outer Diameter: 35mm

Width: 10mm

Model: Customizable

Highlight:

Customizable Single Direction Thrust Bearing

Single Direction Thrust Bearing 20x35x10

Thrust Ball Bearing 51104

Basic Infomation

Place of Origin: CHINA

Brand Name: Kesle

Payment & Shipping Terms

Delivery Time: 5-8 work days

Payment Terms: T/T,Western Union,MoneyGram,PayPal

Gallery

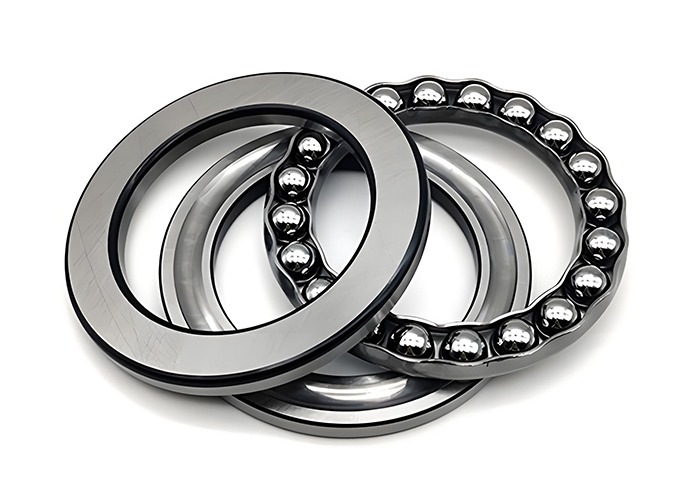

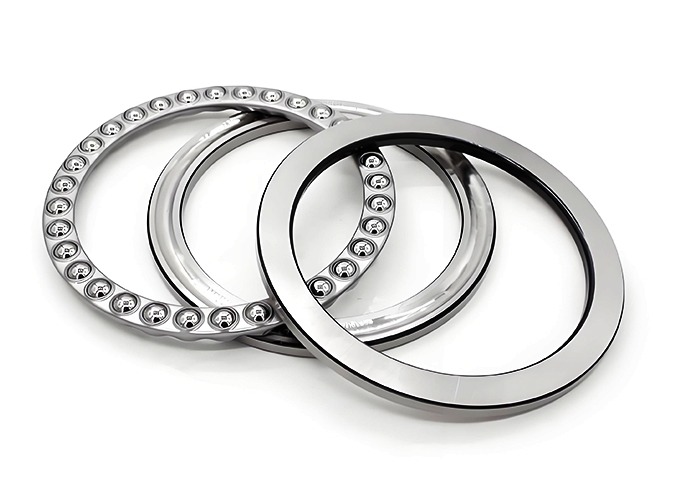

Customizable Single Direction Thrust Bearing 20x35x10 Thrust Ball Bearing 51104

Product Description

Customizable Single Direction Thrust Bearing 20x35x10 Thrust Ball Bearing 51104

51104 Single-Direction Thrust Bearing: 20mm ID, 35mm OD, 10mm Thick For Equipment

As an important member of the thrust ball bearing family, the 51104 flat thrust bearing plays a key role in axial support across various mechanical fields. With its precise dimensional design and reliable performance, it provides solid guarantees for the stable operation of various equipment.

Basic Dimensions

Inner Diameter (d): 20mm - Carefully designed to fit numerous standard shaft diameters, ensuring tight coordination with the shaft for efficient transmission of axial force.
Outer Diameter (D): 35mm - Provides sufficient installation space for rolling elements and cage assembly while meeting compact layout requirements.
Thickness (T): 10mm - Balances load-bearing strength and operational flexibility while minimizing friction and heat generation.

Structural Features

Adopts a separable structure consisting of shaft washer (interference fit with shaft), housing washer (transition fit with equipment housing), and steel ball-cage assembly. This design allows individual installation and disassembly of components, simplifying equipment assembly and maintenance.

Note: The 51104 flat thrust bearing can only bear unidirectional axial loads and cannot withstand radial loads. Requires matching with radial support components for complete shafting support solutions.

Core Materials

Bearing Rings: High-carbon chromium bearing steel (SAE-52100 or GCr15) with hardness HRC 60-64. Stainless steel available for corrosive environments.
Rolling Elements: Precision-ground bearing steel balls with micron-level roundness control. Ceramic rolling elements (silicon nitride) available for high-temperature, high-speed applications.
Cages: Nylon materials (PA66) for conventional use; stamped steel or brass cages for high-speed or high-temperature environments.

Key Performance Parameters

Parameter	Specification
Basic Dynamic Load Rating (C)	15.8-16.2 kN
Basic Static Load Rating (C₀)	28.0-29.0 kN
Limiting Speed (Grease Lubrication)	5300-5600 r/min
Limiting Speed (Oil Lubrication)	7800-8500 r/min
Applicable Temperature Range	-40℃ to 120℃ (extendable to 150℃ with special materials)

Lubrication Requirements

Grease Lubrication

Suitable for speeds ≤5000 r/min. Recommended: Lithium-based grease (Grade EP2) with filling amount of 1/3-1/2 of bearing internal space.

Oil Lubrication

Applicable for high-speed (>5000 r/min) or high-load conditions. Recommended: ISO VG32 or VG46 extreme-pressure industrial gear oil via oil bath or oil injection.

Typical Application Fields

Small and Medium-sized Mechanical Equipment: Dental treatment chair lifting mechanisms, barcode printer paper-feeding shaft support, small elevator traction machine axial positioning
Transmission Systems: Reducer output shaft axial support, motor end covers, Roots pump rotor axial limit
Light Industry and Agricultural Equipment: Knitting machinery roller shafts, small tractor hydraulic systems, canning processing equipment main shafts

With its precise dimensions of 20mm inner diameter, 35mm outer diameter, and 10mm thickness, combined with separable structure, high-quality wear-resistant materials, and stable load-bearing performance, the 51104 flat thrust bearing has become an ideal choice for many small and medium-sized machinery requiring high axial support accuracy and space compactness.
