10x24x9 Single Direction Thrust Bearing 51100 Thrust Bearing For Instruments / Office Equipment

In the transmission and support system of modern mechanical equipment, the 51100 bearing, with its unique design and reliable performance, has become an indispensable key component in many fields. As a single-direction thrust ball bearing, the 51100 bearing mainly bears axial loads and plays an important role in ensuring the stable operation of equipment and achieving precise transmission.

The 10mm inner diameter design can closely fit with the transmission shaft of specific specifications, ensuring a stable connection between the shaft and the bearing during power transmission, effectively reducing looseness and displacement caused by mismatched inner diameters.

The 24mm outer diameter, while ensuring the bearing has a certain load-carrying capacity, fully considers the adaptability to various mechanical structures. Whether it is a small precision instrument or a transmission device in a compact space, the 51100 bearing can be easily installed.

The 9mm height provides sufficient and reasonable operating space for the rolling elements, cages and other core components inside the bearing, so that all components do not interfere with each other during operation, maintaining a good working state.

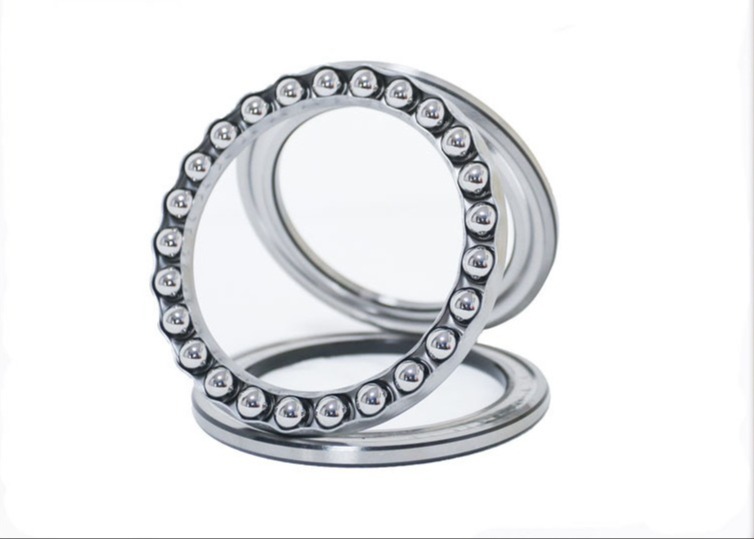

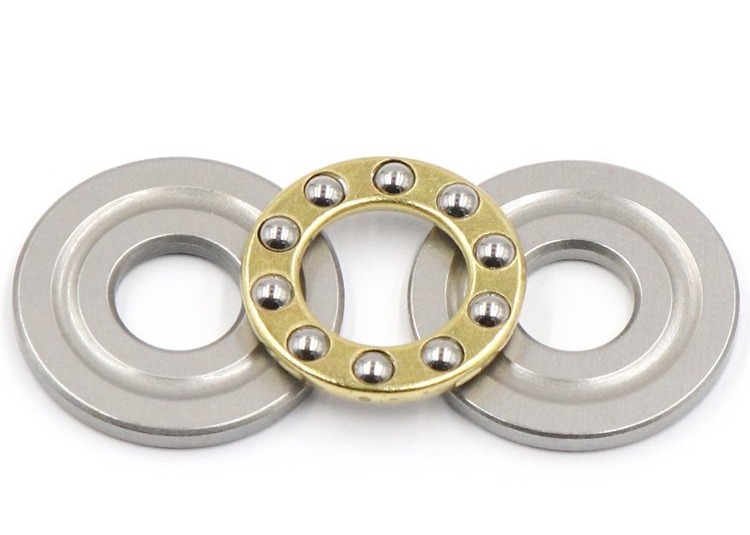

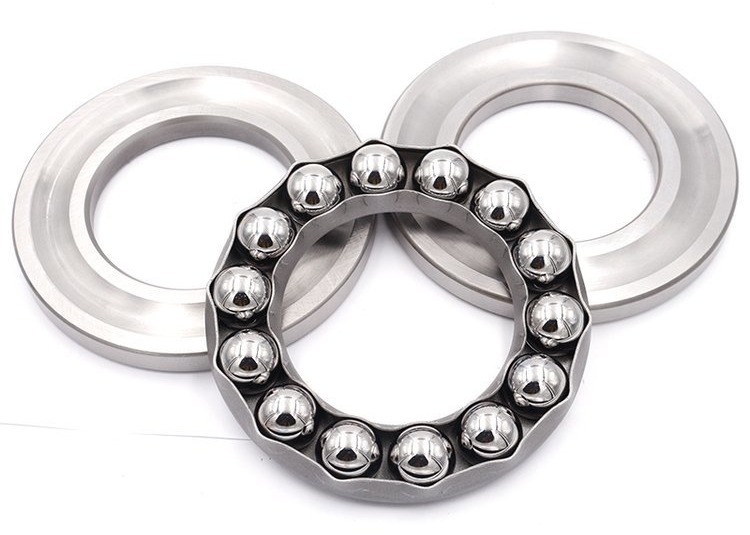

The 51100 single-direction thrust ball bearing consists of a shaft washer, a housing washer, and a set of rolling elements (steel balls) and cage components located between them. The shaft washer is connected to the rotating part, and the housing washer is fixed on the stationary part. This structure enables the bearing to efficiently bear axial loads from a single direction.

The cage is usually formed by stamping sheet metal, which has good toughness and rigidity. It can accurately guide the rolling elements to roll orderly in the raceway, avoid mutual collision and friction between the rolling elements, and effectively prevent the rolling elements from falling off during operation.

The components of the 51100 bearing have separable characteristics, allowing for individual installation and disassembly. This feature shows great advantages in equipment maintenance and overhaul, significantly reducing maintenance difficulty and equipment downtime.

The shaft washer, housing washer and rolling elements are all made of high-quality bearing steel with characteristics of high hardness, high strength and good wear resistance. These properties ensure the bearing can bear large axial loads while maintaining shape accuracy under long-term high-load operation.

The raceways and component surfaces have undergone precision machining to achieve extremely low surface roughness. This high-precision surface treatment reduces friction coefficient, minimizes energy loss, and helps maintain stable temperature during high-speed operation.

• Excellent Unidirectional Axial Load-Carrying Capacity: Can stably carry axial forces from a single direction, providing reliable support for transmission systems in low-speed operation with large axial forces.
• Good Operation Stability: Precise manufacturing and structural design effectively suppress vibration and noise generation, ensuring stability in high-precision applications.
• Convenient Maintenance Characteristics: Separable components allow for specific part replacement rather than complex overall disassembly, reducing technical difficulty and equipment downtime.

• Small Mechanical Transmission: Axial positioning and support in small motors and gear transmission devices for toy manufacturing and small household appliances.
• Instrumentation: Support for sensor shafting in testing instruments like electronic scales and precision pressure gauges, and lens adjustment mechanisms in optical instruments.
• Office Equipment: Paper conveying systems in printers and drum assemblies in copiers to ensure smooth operation and quality output.
• Other Fields: Fitness equipment transmission components and medical device mechanisms requiring stability and precision.

The 51100 single-direction thrust ball bearing, with its precise dimensional specifications, unique structural design, high-quality material technology, excellent performance advantages and wide application fields, has become an important guarantee for many mechanical equipment to achieve efficient and stable operation.
