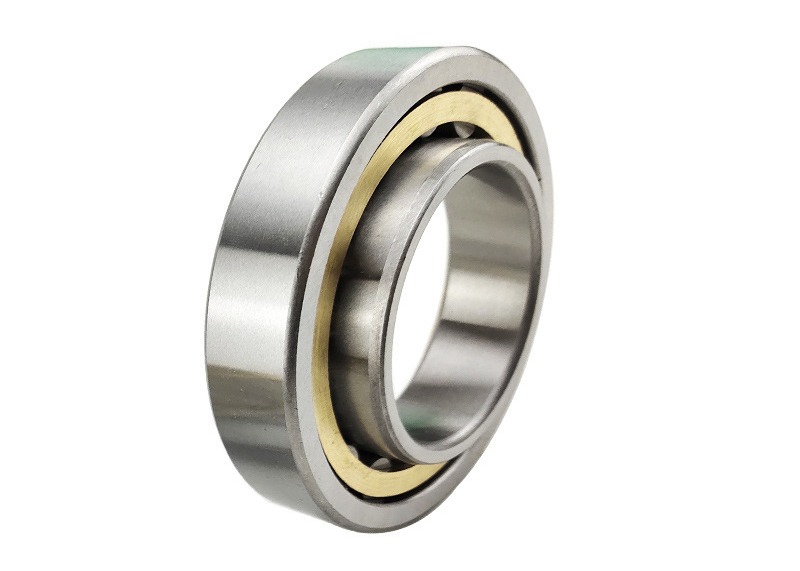

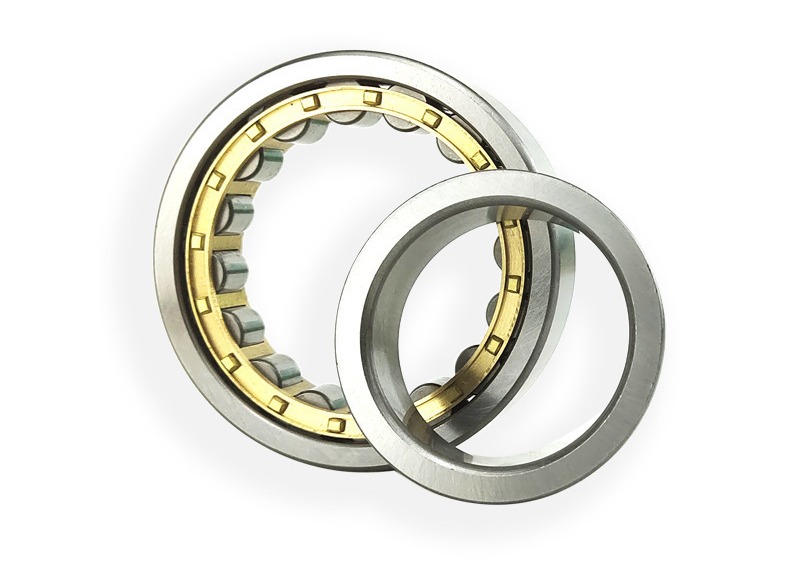

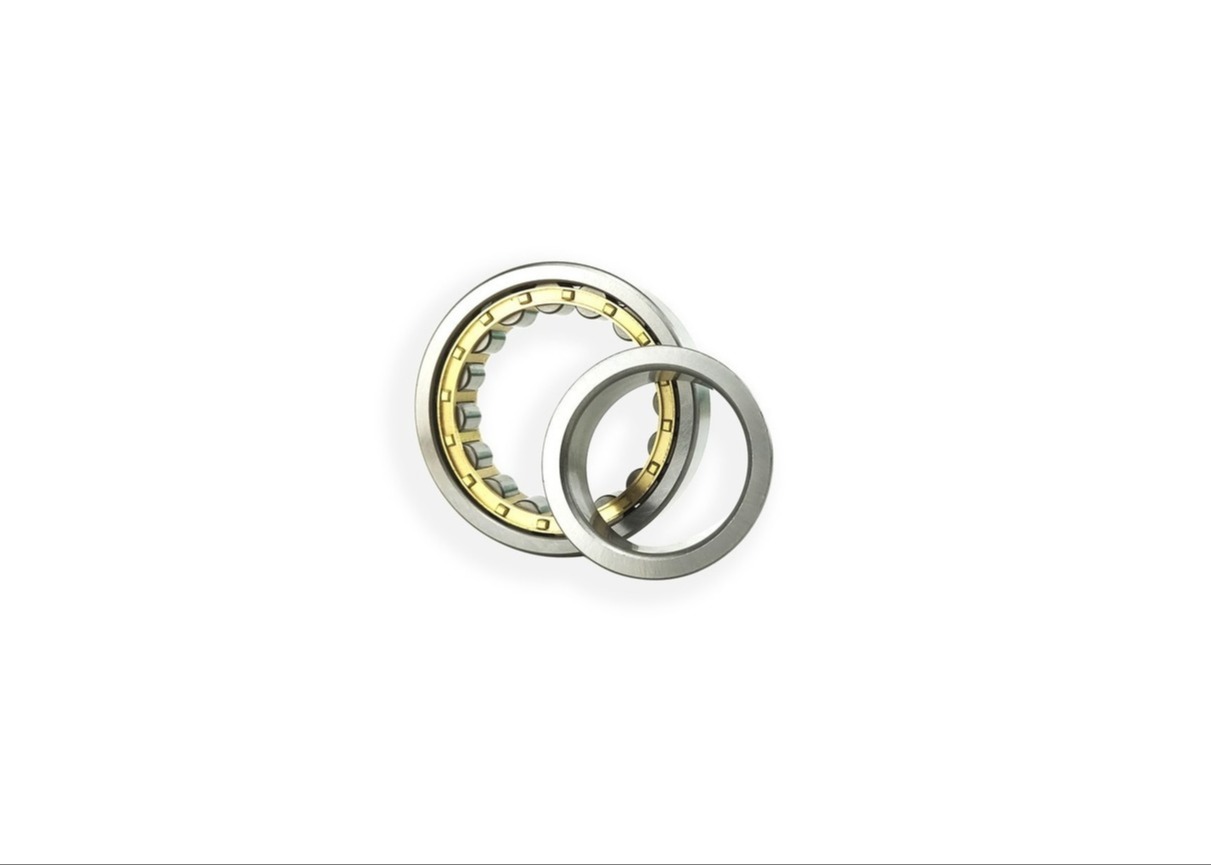

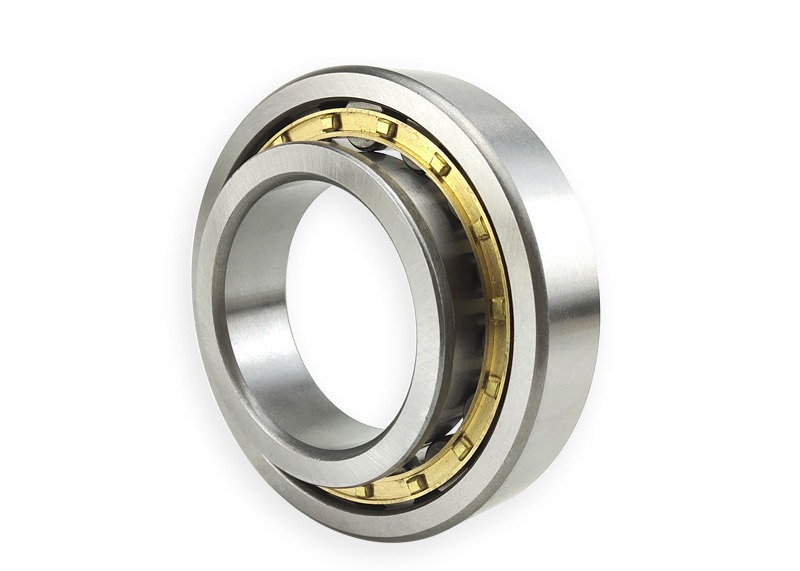

Axial Radial Cylindrical Roller Bearings NJ306EM Industrial Bearings For Machine Tool Industry

The NJ306EM cylindrical roller bearing is a key element in the machinery realm, playing a crucial role in enabling seamless power transfer and ensuring the stable running of equipment. As a member of the single-row cylindrical roller bearing series, it features an inner diameter of 30mm, outer diameter of 72mm, and width of 19mm. This dimensional combination strikes a balance between compactness and significant load-bearing capabilities, making it suitable for a wide range of mechanical applications with diverse operating conditions.

The rolling elements of the NJ306EM bearing are precision-made cylindrical rollers crafted from high-quality high-carbon chromium bearing steel through elaborate precision machining processes. The outcome is an extremely low surface roughness with dimensional accuracy maintained within tight micrometer-level tolerance. The cylindrical shape allows for line contact with the raceways, which greatly expands the contact area compared to point-contact bearings, facilitating more even load distribution. This significantly boosts the bearing's radial load-carrying capacity and effectively reduces local wear, substantially prolonging service life.

Both the inner and outer ring raceways are processed using super-finishing grinding techniques, resulting in surface hardness reaching HRC60-65. This endows the raceways with excellent wear-resistance and fatigue-resistance properties. The geometric parameters are precisely calculated to perfectly match the cylindrical rollers, ensuring smooth rolling within the raceways while minimizing friction coefficient and reducing vibration and noise during operation.

An integral metal-machined cage, typically fabricated from high-strength alloy steel, is used in the NJ306EM bearing. The cage undergoes special heat treatment processes to enhance rigidity and toughness. The pocket size accuracy is extremely high, serving to accurately guide and separate the cylindrical rollers, preventing collisions and friction among them. This ensures orderly arrangement even during high-speed operation, enhancing overall stability and extending service life. In certain models with polyamide cages, good self-lubrication properties help reduce operational noise.

The outer ring features double ribs while the inner ring has a single rib. This configuration provides a certain degree of axial load-carrying capacity, enabling the bearing to withstand one-way axial forces while performing axial positioning functions for the shaft or housing. By restricting displacement in specific directions, the bearing maintains stable operation even under combined loads, ensuring mechanical system reliability.

Due to the line-contact design between cylindrical rollers and raceways, the NJ306EM bearing exhibits outstanding radial load-carrying capacity. Its basic rated dynamic load reaches relatively high values (depending on actual product specifications), enabling it to easily handle substantial radial forces generated during operation of heavy-duty machinery such as main shaft support systems in medium-sized industrial motors, precision machine tools, and various heavy-load transmission devices.

Although primarily designed for radial loads, the unique rib structure allows the NJ306EM bearing to withstand a certain amount of one-way axial load. In working conditions where axial forces are present, it provides reliable axial positioning for equipment, ensuring normal operation under complex stress environments and enhancing overall mechanical system stability and reliability.

Engineered with precision processing technologies and optimized structural design, the NJ306EM bearing maintains stable performance even at high rotational speeds. Low-friction characteristics between rollers and raceways, combined with precise cage guidance, effectively reduce heat generation and vibration during operation. This meets requirements for high-speed, high-efficiency power transmission in applications such as high-speed spindles in the machine tool industry. The limiting speed for oil lubrication reaches approximately 12000-13000 rpm, while grease lubrication allows for around 8000-10000 rpm.

Using high-quality materials and advanced manufacturing processes, the NJ306EM bearing demonstrates excellent fatigue resistance. Under long-term full-load operation conditions, it effectively resists failures caused by material fatigue, significantly extending service life while reducing equipment maintenance frequency and minimizing downtime. This reliability is highly valued in industrial applications requiring continuous operation and high productivity.

Widely used in various industrial machinery, particularly in transmission systems of automated production lines within manufacturing plants. It provides stable support for high-speed and high-load rotating shafts, ensuring smooth production line operation while reducing equipment failure risk and improving production efficiency.

Suitable for rotor support systems in medium-sized generators and turbines within the power generation industry. These power-generating devices operate under high-speed and high-load conditions, making the NJ306EM bearing's ability to handle large radial loads and certain axial forces, along with high-speed rotation stability, an ideal choice for ensuring safe and reliable operation of power generation equipment.

Commonly used for spindle and feed shaft support in precision machine tools. The low-vibration and high-rigidity characteristics effectively reduce spindle run-out and vibration, guaranteeing dimensional accuracy and surface quality of machined workpieces. This improves overall machining efficiency and product quality in the machine tool industry.

Plays a vital role in axle support systems of medium-duty trucks and construction machinery. The bearing's high load-carrying capacity, excellent fatigue resistance, and ability to withstand shock loads make it well-suited for harsh operating conditions with large loads and vibrations, ensuring safe and reliable operation while reducing maintenance costs and enhancing vehicle durability.

Proper lubrication is essential for maintaining performance and extending service life. Lubricant choice (grease or oil) should be based on specific operating conditions including temperature, speed, and load. High-temperature extreme-pressure grease is often recommended for high-load, elevated temperature applications. Before installation, ensure both bearing interior and installation area are thoroughly clean. Appropriate grease filling is typically 1/3 to 1/2 of the bearing's internal space. Regular inspections of lubrication state should be conducted, with timely replenishment or replacement to maintain optimal performance.

Establish a comprehensive regular inspection system for early detection of potential bearing problems. Conduct periodic visual inspections to check for cracks, rust, or abnormal wear on bearing surfaces. Use advanced monitoring tools such as vibration sensors and temperature monitors for continuous condition monitoring. Under normal circumstances, working temperature should not exceed 40°C above ambient temperature. If abnormal increases in vibration or temperature are detected, immediately shut down equipment for thorough inspection and necessary repairs or bearing replacements to prevent further damage.

Maintain a clean installation environment to prevent dust and impurities from entering the bearing. Use specialized installation tools such as hydraulic presses and bearing installation sleeves to ensure proper installation without causing damage. Strictly avoid direct hammering on bearing outer or inner rings, as this can lead to deformation and premature failure. Ensure bearing fit with shaft and housing meets design requirements precisely, with interference fit carefully controlled within specified range to prevent issues such as bearing slippage or over-tightening.

For bearings not in immediate use, proper storage conditions are crucial for maintaining quality and performance. Store in dry, well-ventilated areas free from corrosive gases, away from heat sources and high humidity. Place horizontally to avoid uneven stress and deformation from stacking. Prevent rusting by wrapping in anti-rust paper or plastic film. Conduct regular checks during storage to ensure bearings remain in good condition and performance is not compromised over time.
