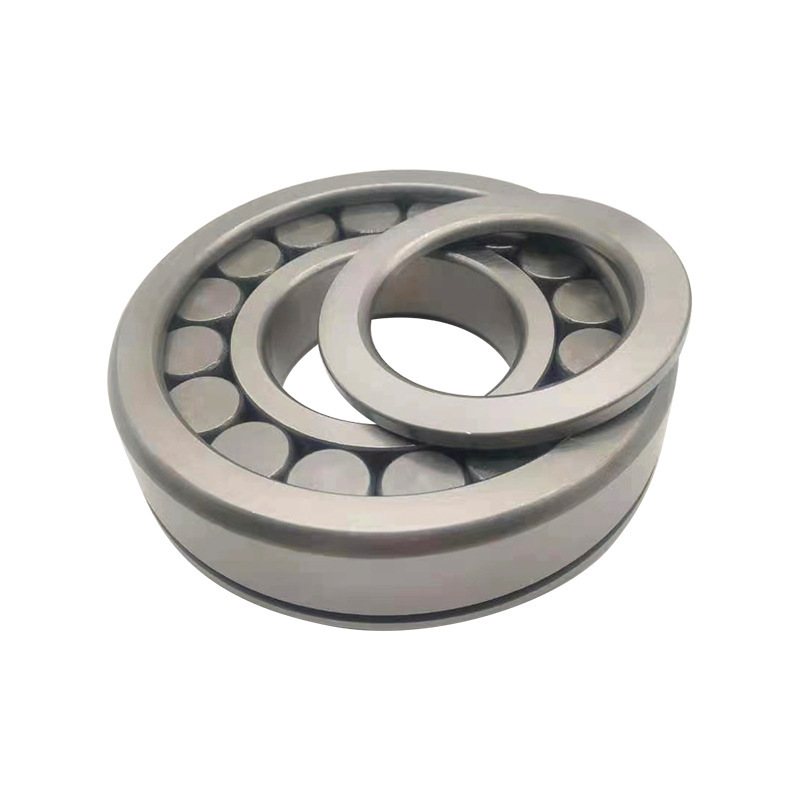

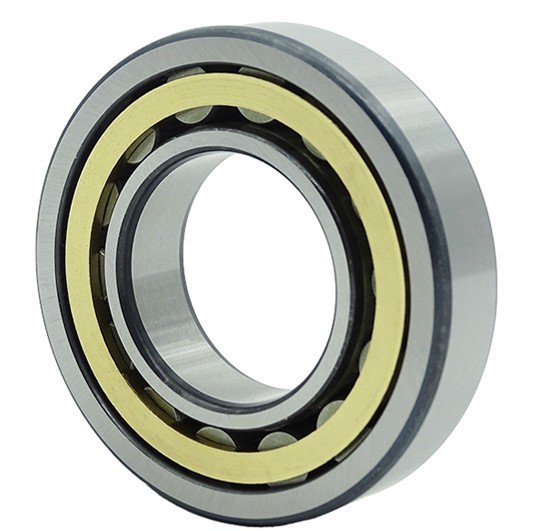

NJ224EM Heavy Duty Roller Bearings - Durable Industrial Machinery Bearings 120x215x58
The NJ224EM cylindrical roller bearing is a critical component in industrial transmission systems, designed for heavy machinery and large-scale equipment applications. With dimensions of 120mm inner diameter, 215mm outer diameter, and 58mm width, this bearing delivers optimal balance between load capacity and structural stability for demanding industrial environments.
Structural Design Features
Rolling Elements
High-precision cylindrical rollers manufactured from high-carbon chromium bearing steel provide exceptional performance. The cylindrical design creates line contact with raceways, distributing loads evenly across larger surface areas for superior radial load capacity and extended service life.
Raceways
Precision-ground raceways with surface hardness of HRC60-65 deliver outstanding wear and fatigue resistance. Optimized geometry ensures smooth roller movement, reduced friction coefficient, and minimal vibration for efficient bearing operation.
Cage Design
Integrated metal machined cage constructed from high-strength alloy steel provides precise guidance and separation of cylindrical rollers. This design prevents roller collision and friction while maintaining orderly arrangement during high-speed operation.
Rib Structure
Double-rib outer ring and single-rib inner ring configuration provides unidirectional axial load capacity and axial positioning functionality. This design ensures stable operation under combined loading conditions.
Performance Characteristics
- Exceptional Radial Load Capacity: Line contact design enables handling of substantial radial forces in heavy machinery applications
- Axial Load Performance: Rib structure accommodates unidirectional axial loads while providing reliable axial positioning
- High-Speed Stability: Precision engineering ensures stable performance at elevated rotational speeds with minimal heat generation and vibration
- Superior Fatigue Resistance: Advanced materials and manufacturing processes extend service life under continuous full-load operation
Application Fields
- Heavy Machinery: Rolling mills, crushers, and other metallurgical and mining equipment
- Power Generation: Large generator and turbine rotor support systems
- Machine Tool Industry: CNC machine tool spindles and feed shafts requiring precision and stability
- Port Machinery: Cranes, conveyors, and handling equipment with frequent start-stop cycles
Technical Specifications
| Dimension Type |
Value |
| Inner Diameter (d) |
120mm |
| Outer Diameter (D) |
215mm |
| Width (B) |
58mm |
| Weight |
Approximately 15.8kg |
Actual weight may vary slightly due to manufacturing process and material differences
Maintenance Guidelines
Lubrication Management
Select appropriate grease or lubricating oil based on operating temperature, speed, and load conditions. High-temperature extreme pressure grease recommended. Maintain clean installation environment with grease filling at 1/3-1/2 of bearing internal space. Regular lubrication state inspection required.
Regular Inspection
Implement comprehensive inspection protocols including visual checks for cracks, rust, and wear. Monitor vibration and temperature using appropriate equipment. Normal operating temperature should not exceed 40°C above ambient temperature. Immediate shutdown required for abnormal conditions.
Installation Specifications
Ensure clean installation environment free from contaminants. Use specialized installation tools (hydraulic jacks, sleeves) to avoid direct impact on bearing rings. Maintain proper fit accuracy with shaft and housing, controlling interference within specified ranges.
Storage Requirements
Store in dry, ventilated environments away from corrosive gases, heat sources, and moisture. Position bearings horizontally to prevent stacking pressure. Use anti-rust paper or plastic film wrapping. Conduct regular storage condition checks to preserve bearing performance.
