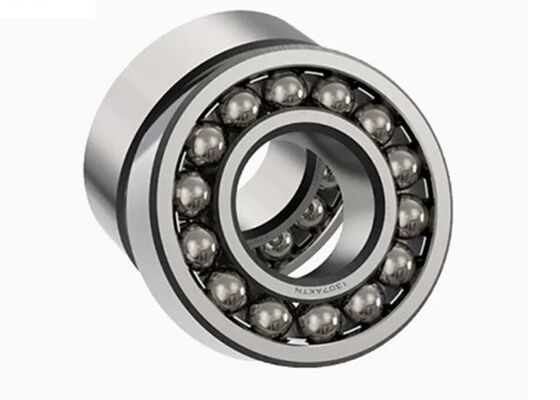

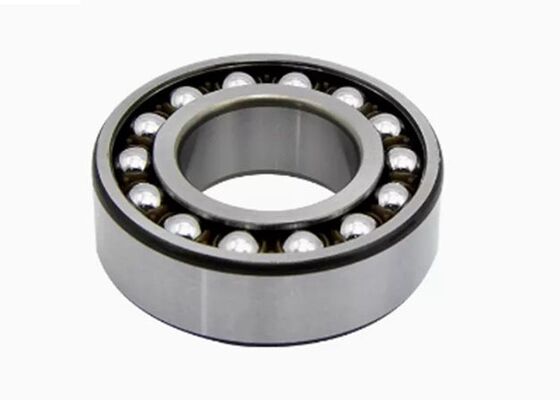

2300 Self Aligning Ball Bearing 10mm ID 35mm OD 17mm Width For Industrial Machinery

1
MOQ
2300 Self Aligning Ball Bearing 10mm ID 35mm OD 17mm Width For Industrial Machinery
Features Gallery Product Description Chat Now
Features
Specifications
Type: Double Row Self Aligning Ball Bearing
Bearing Material: Bearing Material
Bore: 10 Mm
Outer Diameter: 35 Mm
Width: 17 Mm
Model: Customizable
Highlight:

2300 Self Aligning Ball Bearing

,

Industrial Machinery 2300 Bearing

,

Self Aligning Industrial Machinery Bearings
Basic Infomation
Place of Origin: CHINA
Brand Name: Kesle
Model Number: NU2322ECM
Payment & Shipping Terms
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union,MoneyGram,PayPal
Product Description
2300 Self-Aligning Ball Bearing 10mm ID 35mm OD 17mm Width
The 2300 self-aligning ball bearing offers unique application value in mechanical transmission with its special structural design and excellent performance characteristics suitable for various working conditions.
Structural Design
Rolling Elements and Raceways: Features two rows of high-precision steel balls with excellent roundness and low surface roughness. The inner ring has a double-groove structure while the outer ring uses a single concave spherical raceway, enabling automatic axis adjustment to compensate for misalignment.
Cage: Typically made from high-quality steel plate through stamping, providing lightweight yet tough construction. Nylon cages are available for corrosion-resistant applications, offering good self-lubricating properties.
Technical Specifications
Parameter Category Specific Parameter Value
Dimensional Parameters Inner Diameter 10mm
Outer Diameter 35mm
Thickness 17mm
Load Parameters Basic Dynamic Radial Load Rating 9200N
Basic Static Radial Load Rating 2010N
Axial Load Capacity Bidirectional axial load capacity (refer to manufacturer's manual)
Speed Parameters Limiting Speed (grease lubrication) 17000-18000r/min
Limiting Speed (oil lubrication) 20000-22000r/min
Material Parameters Inner/Outer Rings and Steel Balls High-quality bearing steel (HRC60-65) or stainless steel
Cage Material Steel plate stamping or nylon
Fit and Clearance Recommended Shaft Tolerance m6 tolerance
Recommended Bearing Housing Bore Tolerance J7 tolerance
Radial Clearance Follows industry standards
Temperature Range Applicable Temperature -20℃ to +120℃ (general lubrication)
Performance Advantages
  • Strong Self-Aligning Ability: Compensates for angular deviations up to 3°, reducing additional stress and wear
  • High Load-Carrying Capacity: Double-row ball design provides excellent radial load capacity and bidirectional axial load capability
  • Low Friction and Long Service Life: High-precision components and optimized design reduce friction, improve efficiency, and extend lifespan
  • Good Adaptability: Multiple sealing options available (open, 2RS rubber seal, ZZ metal dust cover) for various environments
Application Fields
  • Industrial Machinery: Motors, reducers, fans, pumps - compensates misalignment and handles complex loads
  • Automobile Manufacturing: Engine, transmission, and wheel hub components - adapts to shaft deflection and ensures stable rotation
  • Medical Devices: Small diagnostic and therapeutic equipment - provides precision, low noise, and stability
  • Office Equipment: Printers, copiers - ensures quiet operation and long service life
Installation and Maintenance
Installation Points: Ensure clean environment, follow recommended tolerances, use professional tools. Hot installation at 80℃-120℃ or press installation methods recommended.
Lubrication Points: NLGI Grade 2 lithium-based grease recommended (fill 1/3 to 1/2 of internal space). Use synthetic lubricating oil for high-temperature, high-speed, or heavy-load conditions.
Maintenance Points: Implement vibration monitoring (weekly), temperature detection (monthly), and noise analysis. Maintain clean operating environment and proper sealing protection.
Regular maintenance and proper installation are crucial for optimal bearing performance and extended service life.
