30203 Tapered Roller Bearing: High Load & Precision Performance
Product Overview
The 30203 tapered roller bearing plays a crucial role in mechanical transmission systems. With its unique design and excellent performance, it provides a solid foundation for the stable operation of numerous mechanical equipment. The special structure enables this bearing to withstand both radial and unidirectional axial loads simultaneously, performing exceptionally well in applications with strict requirements for bearing capacity and running accuracy.
Widely used in industries such as automobiles, machine tools, and heavy machinery, it serves as a core component to ensure efficient and reliable equipment operation.
Structural Design
Exquisite Cooperation between Rollers and Raceways
The 30203 tapered roller bearing features frustum-shaped rollers precisely guided by the large rib of the inner ring. The vertices of the conical surfaces of the inner ring raceway, outer ring raceway, and roller rolling surface converge at a point on the bearing centerline. This design allows rollers to achieve pure rolling on raceway surfaces.
Through combined force from inner and outer ring raceways, along with action and reaction force on the inner ring's large rib, a state of force balance is achieved. In actual working scenarios with complex variable loads, this structure effectively disperses stress, ensures smooth bearing operation, reduces wear risk, and prolongs bearing service life.

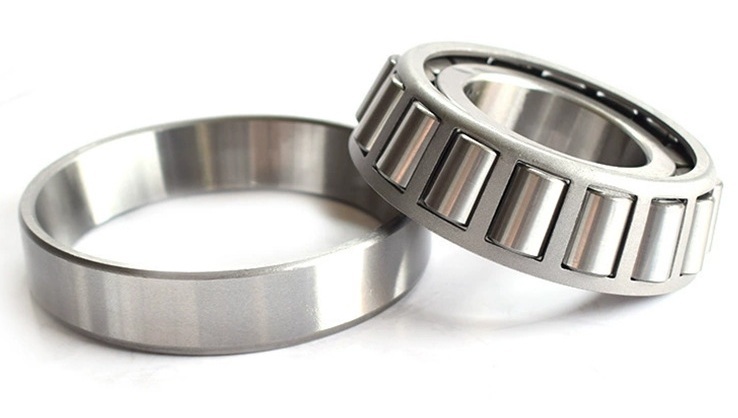

Separable Inner and Outer Ring Structure
This bearing adopts a structure where the outer ring and inner ring assembly can be separated, greatly facilitating installation and maintenance processes. During installation, inner and outer rings can be installed separately, with axial and radial clearances flexibly adjusted to meet different working condition requirements.
Both inner and outer rings can be installed with interference fit, ensuring tight fitting with shaft and bearing housing during high-load operation, preventing loosening, thereby improving equipment operation accuracy and stability.
Dimensional Specifications
| Dimension Type |
Dimension Value (mm) |
| Inner Diameter (d) |
17 |
| Outer Diameter (D) |
40 |
| Width (B) |
13.25 |
| Inner Ring Height (C) |
12 |
| Outer Ring Height (T) |
11 |
| Weight |
Approximately 0.1kg |
Actual weight may fluctuate within a certain range due to differences in manufacturing processes and materials.
Performance Advantages
Strong Bearing Capacity
The 30203 tapered roller bearing offers excellent load-bearing performance, capable of withstanding large radial and unidirectional axial loads. This is attributed to its unique roller and raceway design, where the large contact area between rollers and raceways effectively disperses load and enhances bearing capacity.
Good Rigidity and Accuracy Retention
Since tapered roller bearings feature line contact between rollers and raceways, they provide higher rigidity compared to point contact bearings. During operation, they effectively suppress shaft deformation and vibration while maintaining high running accuracy.
Adaptability to High-Speed Operation
Although primarily designed for large loads, the 30203 model has been carefully optimized to adapt to high-speed operation within certain ranges. Through material selection, structural optimization, and advanced manufacturing processes, internal friction and heat generation are reduced, ensuring stable operation at relatively high speeds.
Application Fields
Automobile Industry
Widely used in front wheels, rear wheels, transmissions, differential pinion shafts, and other automotive components. In wheel applications, they bear radial road forces during vehicle operation and axial forces from steering and braking, ensuring wheel stability. In transmissions and differentials, they handle complex loads from gear transmission, ensuring efficient and smooth power transfer.
Machine Tool Field
Machine tool spindles demand high running accuracy and rigidity. The 30203 tapered roller bearing, with its excellent rigidity and accuracy retention, serves as an ideal choice for machine tool spindles. It provides stable spindle support during high-speed cutting, ensures precise tool positioning, and enables high-precision component machining.
Construction Machinery Field
Construction machinery such as cranes and excavators face complex variable loads during operation. The 30203 tapered roller bearing withstands significant radial and axial loads generated by construction machinery operation, ensuring stable performance of key equipment components while adapting to harsh working environments and high-intensity operational requirements.
