Home /Products/Tapered Roller Bearing/Precision Tapered Roller Bearing 31313 Split Design For Engineering Machinery

Precision Tapered Roller Bearing 31313 Split Design For Engineering Machinery

1
MOQ
Precision Tapered Roller Bearing 31313 Split Design For Engineering Machinery
Features Gallery Product Description Chat Now
Features
Specifications
Type: Tapered Roller Bearing
Precision Rating: P6,P0
Inner Diameter: 65mm
Outer Diameter: 140mm
Total Width: 36mm
Reference Speed: 3600r/min
Highlight:

Precision Tapered Roller Bearing

,

Tapered Roller Bearing 31313

,

Engineering Machinery 31313 Bearing
Basic Infomation
Place of Origin: CHINA
Brand Name: Kesle
Model Number: 31313
Payment & Shipping Terms
Delivery Time: 5-8 work days
Payment Terms: T/T,Western Union,MoneyGram,PayPal
Product Description
Precision Tapered Roller Bearing 31313 Split Design For Engineering Machinery
31313 Tapered Roller Bearing features optimized raceways and rollers that significantly boost fatigue life. This high-performance mechanical component is designed to bear combined radial and unidirectional axial loads.
Basic Parameters
  • Dimensions: Inner diameter 65mm, outer diameter 140mm, total width 36mm, inner ring width 33mm, outer ring width 23mm, weight approximately 2.37kg
  • Speed: Limiting speed 4800r/min (SKF data), reference speed 3600r/min
  • Precision Class: Default P0 (general grade), with higher precision (P6) available for custom requirements
Structural Features
  • Split Design: Separable inner ring, outer ring, and roller assembly for easy installation and maintenance
  • Optimized Design: Logarithmic curve crown design disperses edge stress, increasing fatigue life by over 12%
  • Load Capacity: Basic dynamic load rating 185.8kN, basic static load rating 218.6kN
  • Contact Angle: 28°48'39" for combined radial and axial load bearing (requires paired usage)
Materials and Manufacturing
  • Material: High-carbon chromium bearing steel (GCr15) with quenching and tempering treatment
  • Hardness: HRC58-62 for high strength and wear resistance
  • Standards: Compliant with GB/T 297-94 and DIN ISO 355 standards
Application Fields
  • Engineering Machinery: Crushers, mining machinery transmission systems
  • Automotive Industry: Heavy-duty truck drive axle main reducers
  • Industrial Equipment: Submersible electric pumps, marine pumps, disc mills
Installation and Maintenance
  • Installation Methods: Pressure method, temperature difference method (heating ≤100℃), hydraulic method
  • Clearance Adjustment: Axial clearance 0.05-0.12mm (CN group standard)
  • Lubrication: Lithium-based grease (NLGI Grade 2) or ISO VG 46 lubricating oil
  • Temperature Range: -30℃ to +120℃ operating range
Performance Advantages
  • High Load Capacity: 12.13% increased dynamic load compared to traditional models
  • Extended Service Life: Over 20% longer life compared to linear designs
  • Enhanced Reliability: Stable operation in harsh environments with easy wear inspection

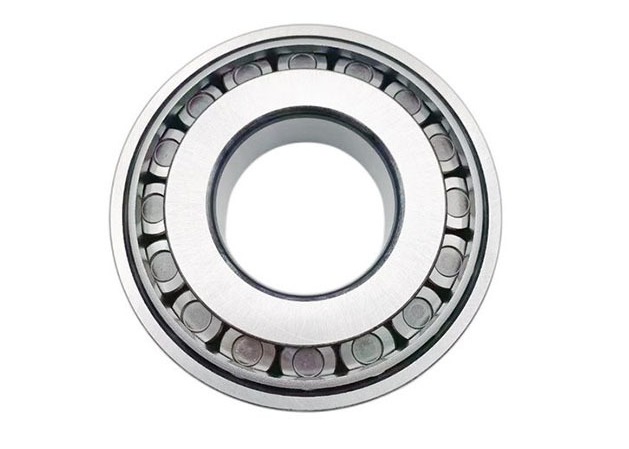

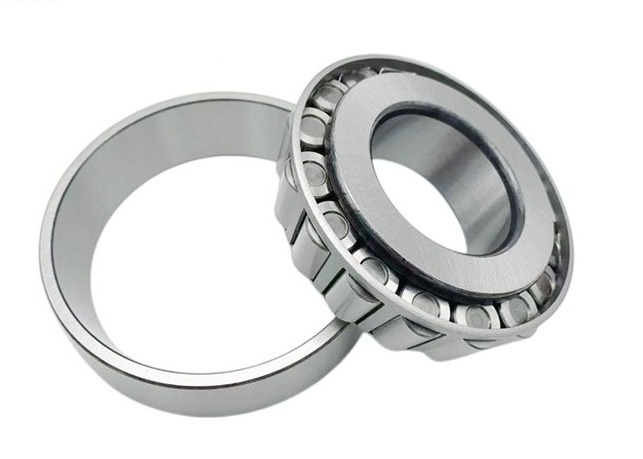

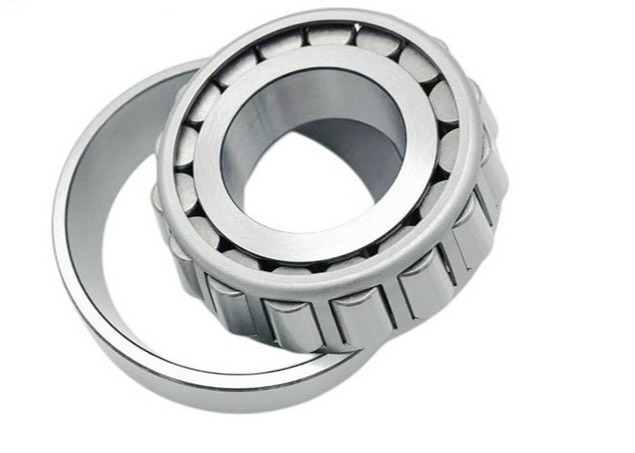

Precision Tapered Roller Bearing 31313 for excavator and industrial applications
Tapered Roller Bearing Specifications
Bearing No d (mm) D (mm) T (mm) B (mm) C (mm) R min r min C (kN) C0 (kN) kg
31305256218.2517131.51.540.746.10.262
31306307220.7519141.51.552.060.00.389
31307358022.7521152.01.566.077.00.508
31308409025.2523172.01.581.096.00.722
313094510027.2525182.01.596.0114.00.950
313105011029.2527192.52.0108.0128.01.230
313115512031.5029212.52.0130.0158.01.560
313126013033.5031223.02.5145.4176.81.920
313136514036.0033233.02.5165.7202.62.390
313147015038.0035253.02.5186.9231.02.870
313157516040.0037263.02.5222.0266.03.470
313168018042.5039273.02.5236.0282.04.120
313178518044.5041284.03.0263.0317.04.810
313189019046.5043304.03.0282.0336.05.600
