Features

Specifications

Bearing Series: Self Aligning Roller Bearings

Bearing Material: Bearing Steel GCr15

Inner Diameter: 100mm

Outer Diameter: 165mm

Width: 52mm

Model: Customizable

Highlight:

23120CA Self Aligning Roller Bearings

Self Aligning Roller Bearings 100x165x52

100x165x52 High Load Capacity Bearing

Basic Infomation

Place of Origin: CHINA

Brand Name: Kesle

Payment & Shipping Terms

Delivery Time: 5-8 work days

Payment Terms: T/T,Western Union,MoneyGram,PayPal

Gallery

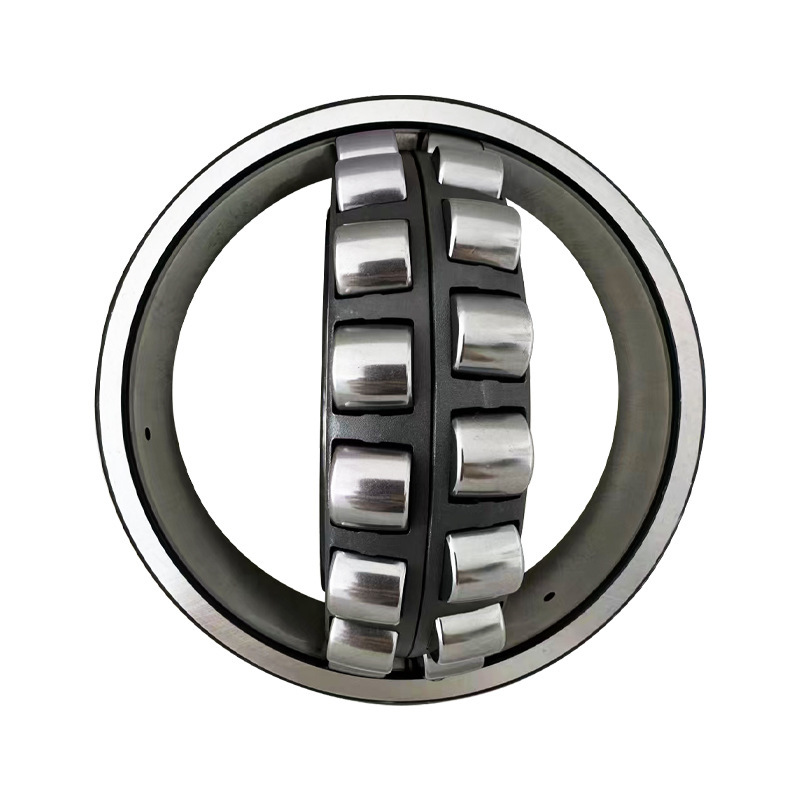

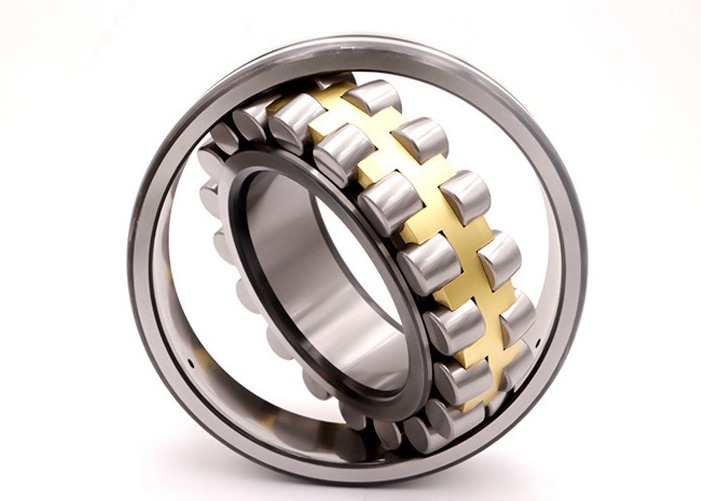

23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing

Product Description

23120CA Self Aligning Roller Bearings 100x165x52 High Load Capacity Bearing

23120CA Spherical Roller Bearing with 100mm Bore, 165mm OD, 52mm Width - High Load Capacity

Basic Information

Bearing Type: Double-row spherical roller bearing
Model Interpretation: "231" stands for the bearing series; "20" indicates the inner diameter size (inner diameter = 20 × 5 = 100mm); "CA" means it is equipped with a brass solid cage and has a cylindrical bore design.

Dimensional Specifications

Dimension Type	Value (mm)
Inner Diameter (d)	100
Outer Diameter (D)	165
Width (B)	52

Structural and Performance Features

Structural Design

Self-aligning Structure: The outer ring raceway is spherical, and the inner ring contains two rows of raceways. Cooperating with the barrel-shaped rollers, it can automatically compensate for shaft deflection, installation errors, and misalignment (allowing an aligning angle of 1°-2.5°), thus reducing additional stress and wear.
Cage: The brass solid cage (CA) has low noise and certain self-lubricating properties, which can stably carry the rollers and adapt to working conditions with multiple rolling elements and limited space.
Rolling Elements: The barrel-shaped rollers are in linear contact with the raceways, enabling them to bear large radial loads and bidirectional axial loads.

Core Performance

High Load-carrying Capacity: Suitable for heavy-load and impact load scenarios, meeting the strict load requirements of heavy machinery.
Wear Resistance and Fatigue Resistance: Made of high-quality bearing steel and processed through professional heat treatment, it can operate stably for a long time in harsh environments and has a long service life.
Stable Operation: The structural design reduces vibration and noise, improving the operation accuracy of the equipment.

Application Fields

Mining machinery (crushers, vibrating screens, etc.)
Metallurgical equipment (rolling mill gearboxes, continuous casters, etc.)
Papermaking machinery (various load-bearing components of paper machines)
Power equipment (hydraulic generators, vertical motors, etc.)
Construction machinery (tower cranes, mills, etc.)

Technical Parameters

Basic rated radial dynamic load: 287kN

Limiting Speed: 2000rpm (grease lubrication), 2800rpm (oil lubrication)

Weight: Approximately 4.42kg
