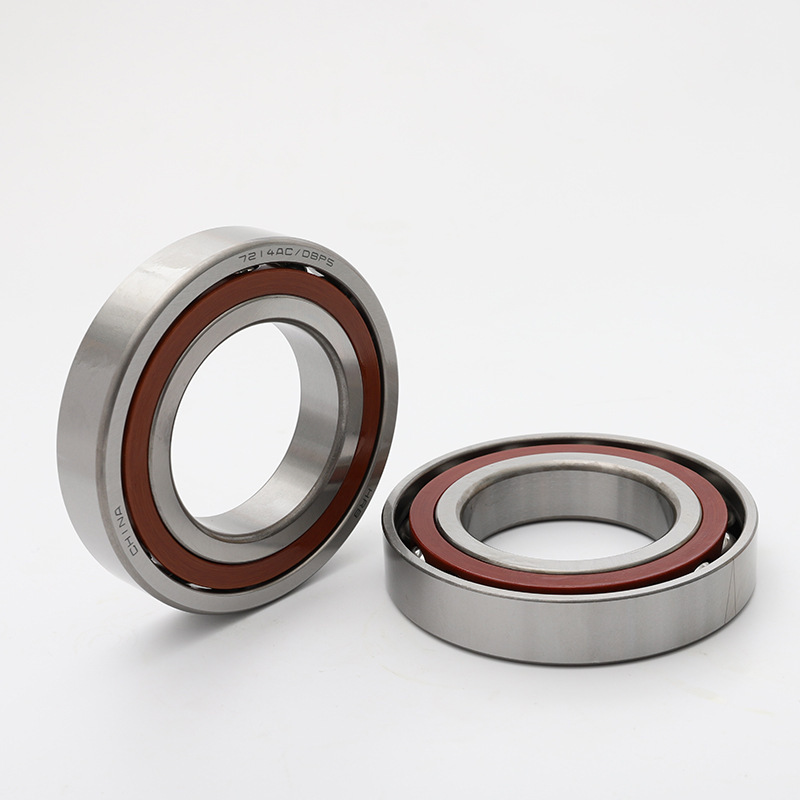

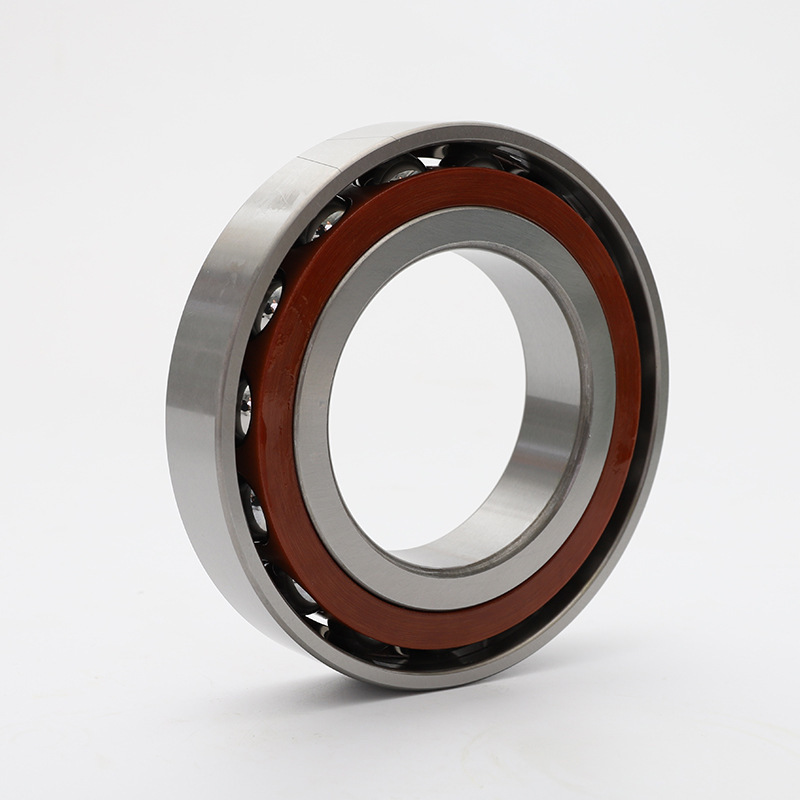

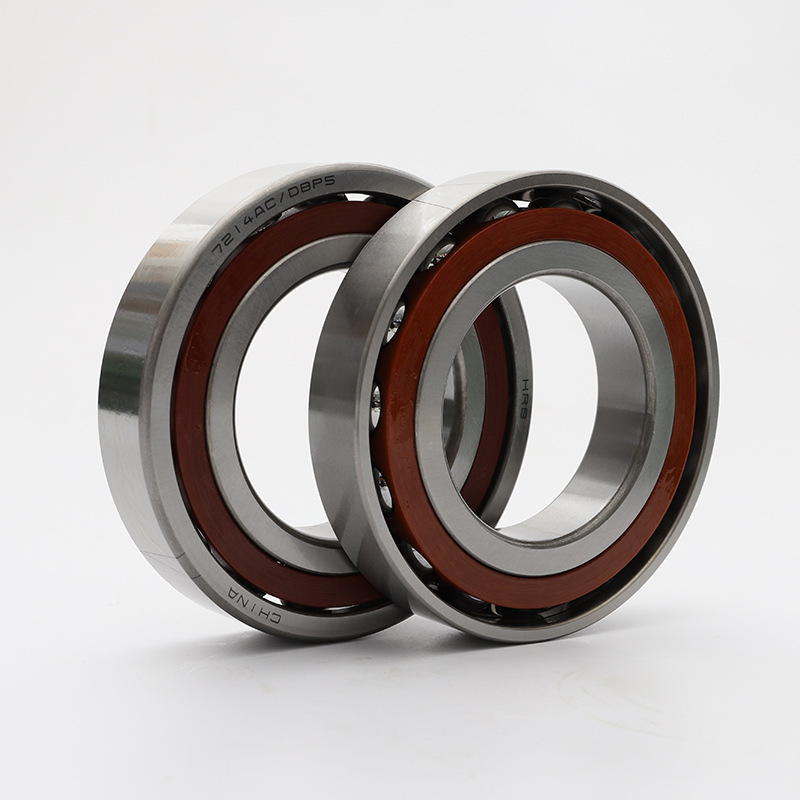

7203AC Single Row Angular Contact Bearing , Precision High Speed Low Friction Bearings

The 7203AC Angular Contact Ball Bearing delivers high-precision performance for demanding high-speed applications. This single-row, non-separable bearing features optimized raceway geometry to reduce friction and heat generation during continuous operation.

• Tolerance compatibility: Shaft: H7/k6, Housing: J7
• Temperature range: Standard: -20°C to 120°C; High-temperature variants: Up to 300°C
• Sealing options: Open design (standard); Optional 2RS (rubber seals) or ZZ (metal shields)

• Industrial Machinery: Machine tool spindles, gearboxes and reducers, pumps and compressors
• Automotive & Transportation: Turbochargers, electric motor shafts in EV drivetrains
• Precision Equipment: Robotics, medical devices including dental handpieces and diagnostic equipment

• Lubrication: Lithium-based grease (NLGI 2) with 10%-15% cavity filling; synthetic grease recommended for high-temperature applications
• Inspection intervals: Monitor temperature and noise every 8-12 hours; replace lubricant every 2,000~5,000 hours

• Meets ISO 9001:2015 and industry standards (ISO 281 for load ratings)
• Interchangeable with equivalent models from major manufacturers (NSK 7203AC, Timken 7203AC)

• Material upgrades: Ceramic variants (Si3N4 balls) for non-magnetic applications; Stainless steel (SUS440C) for corrosion resistance
• Special configurations: Laser-etched part numbers, phosphating or black oxide coatings

The 7203AC angular contact ball bearing combines high load capacity, precision, and adaptability, making it ideal for critical industrial and automotive applications. Its non-separable design and standardized interfaces simplify installation, while material and sealing options extend its usability across diverse environments.
